High-Speed Nail Making Machine Manufacturer

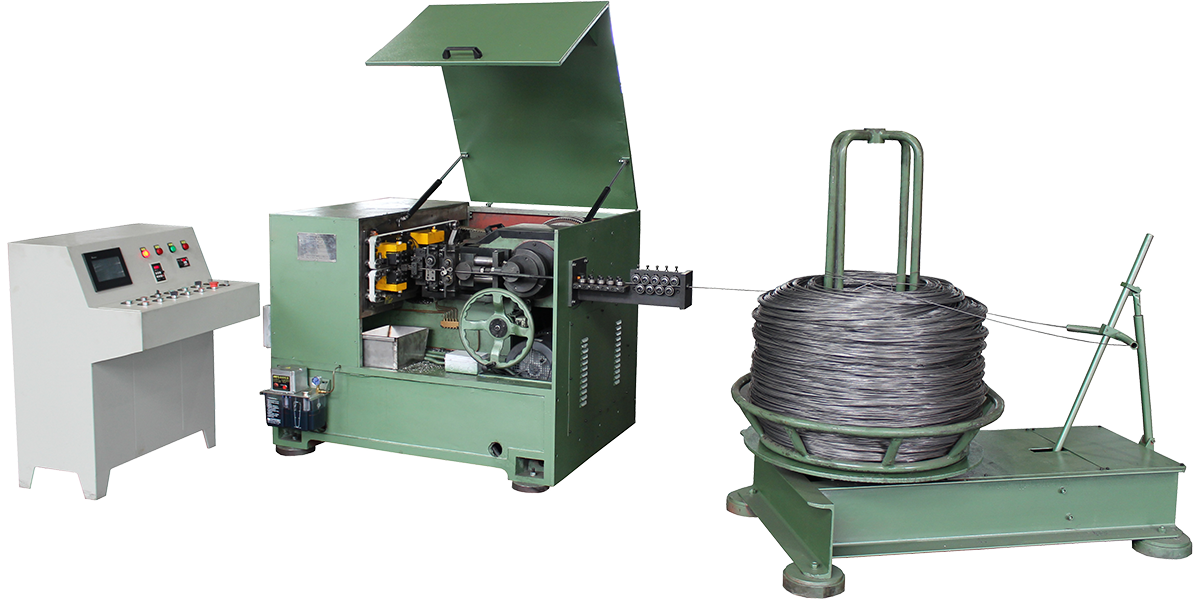

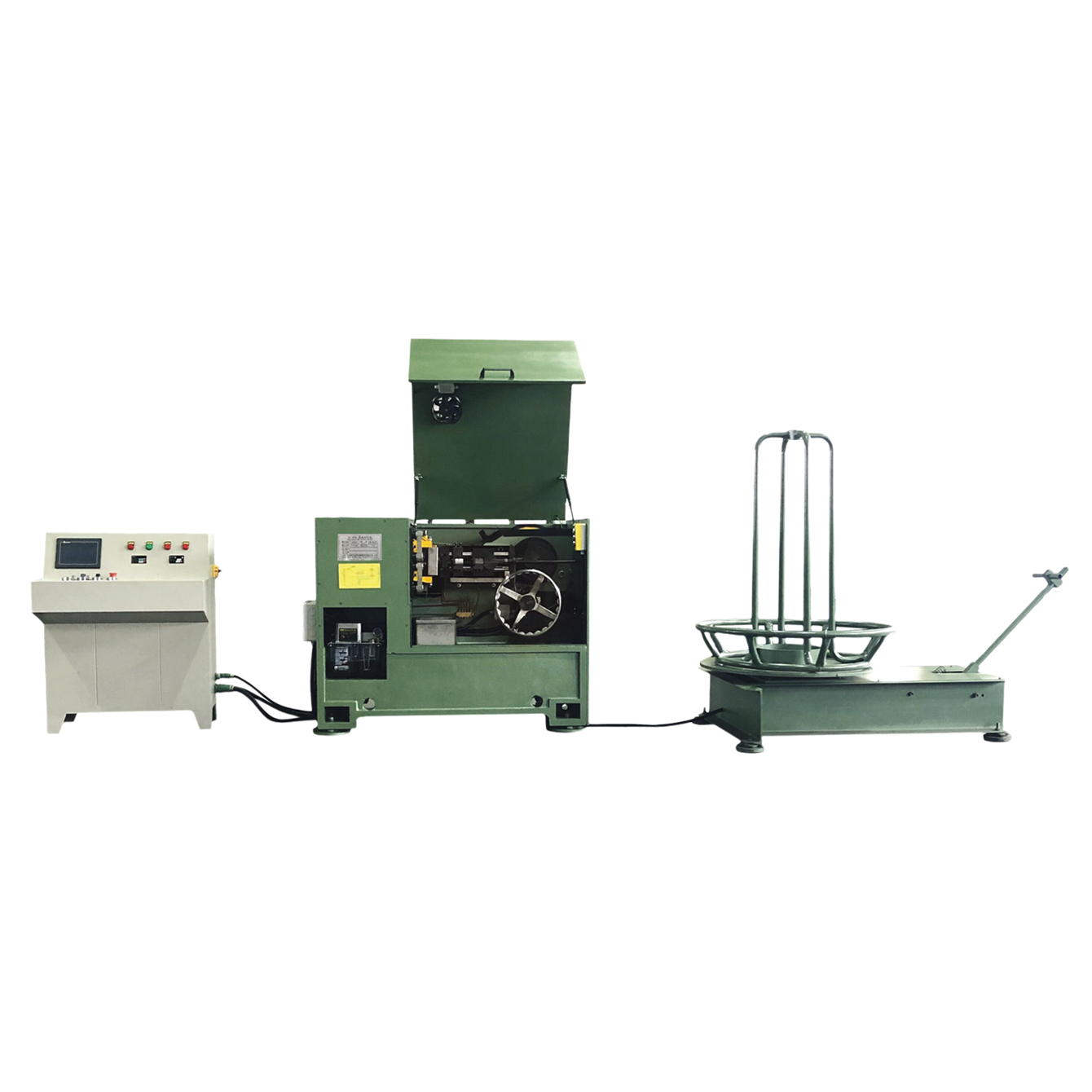

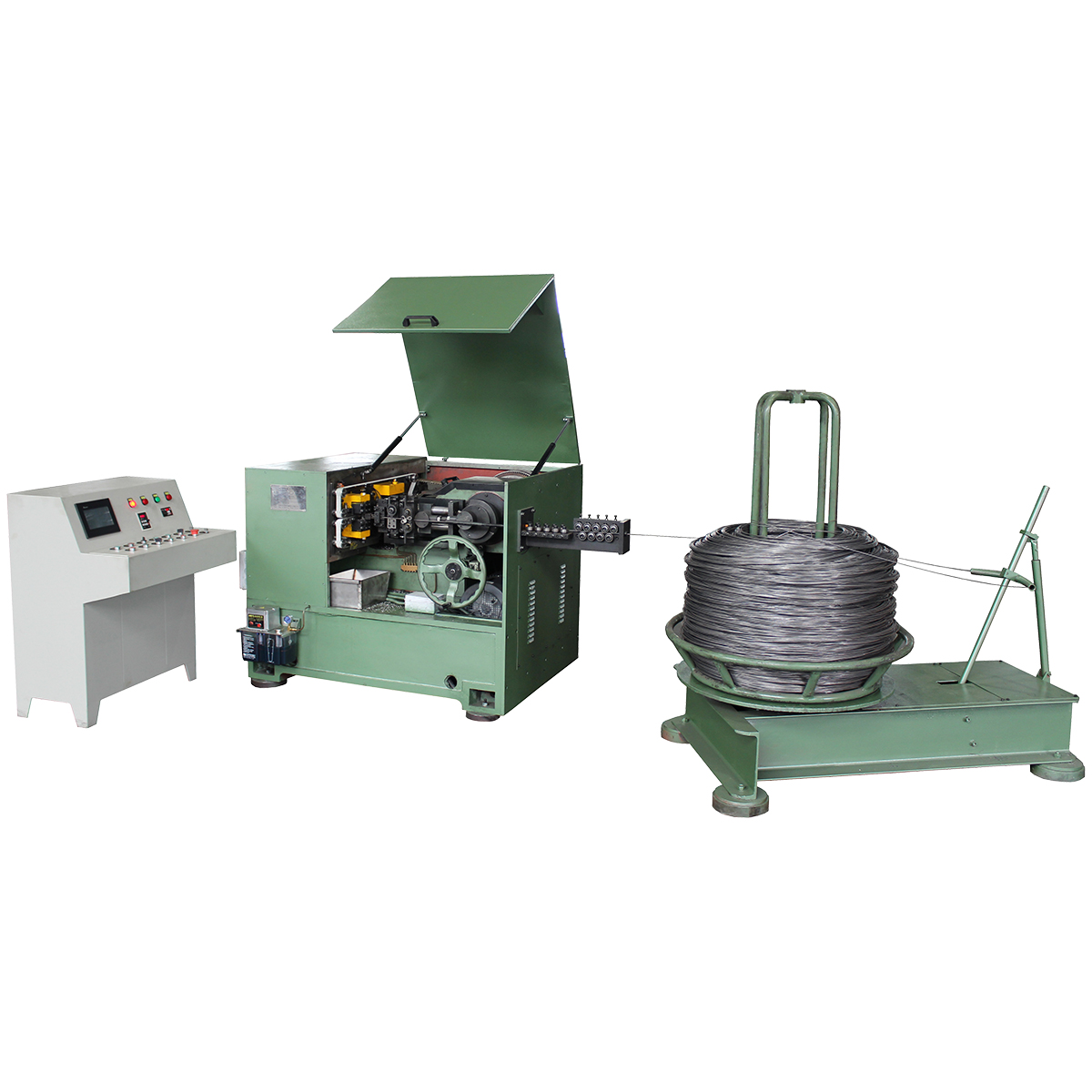

High Speed Nail Making Machine

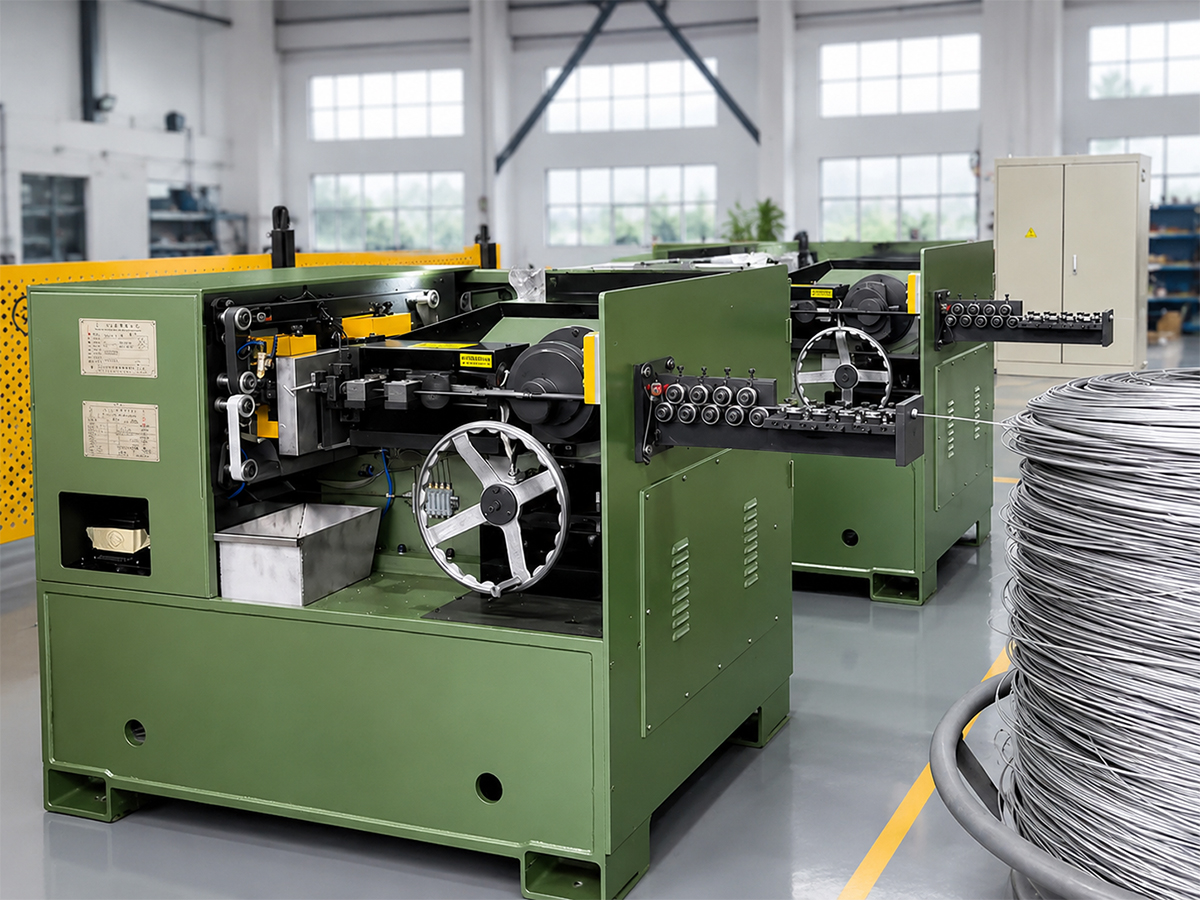

What is a High Speed Nail Making Machine?
JINGU High-Speed Nail Making Machine is a state-of-the-art industrial nail production solution designed for efficiency, precision, and durability. Ideal for manufacturing a wide range of nails, including common nails, coil nails, paper strip nails, and plastic strip nails, this machine ensures high-speed production with minimal maintenance. Featuring advanced PLC control, stable performance, and energy-efficient operation, it is suitable for construction, furniture, and packaging industries. JINGU’s high-speed nail making machine guarantees consistent quality, customizable nail sizes, and is CE certified for safety and reliability.
Key Features of High Speed Nail Making Machine

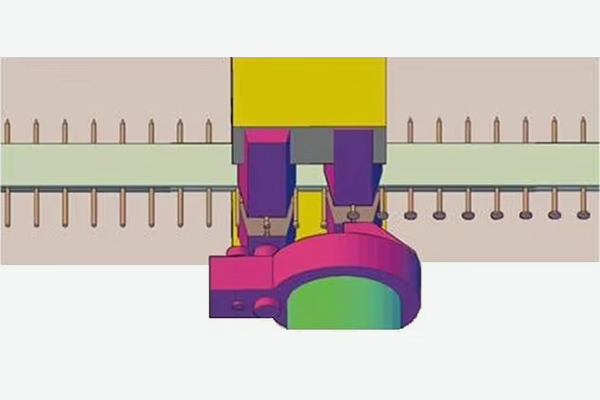

Unique patent, two-time heading, double-dies and double-punches structure
1. Bigger nail heads can be easily gotten
2. Nail heads are always very round and in the center.
3. Nail head without knock marks, consistent and good looking
4. Uniform thickness of the nail cap diameter.
5. Hollow design gripping dies, no small head, no ash blocking

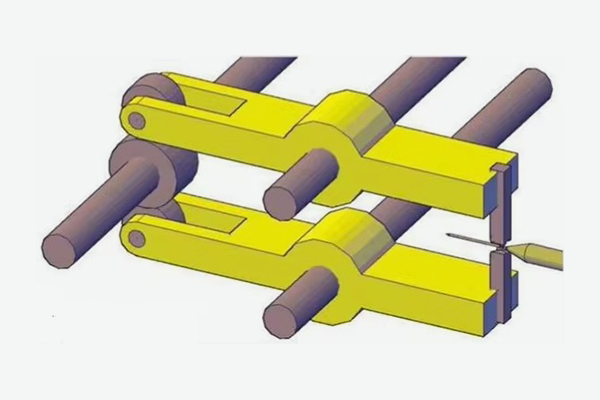

Nail cutter holder adopts pendulum structure
1. shorter stroke and lower mechanical wear
2. High precision, nail cutters work without touch with longer service life.
3. One set of cutters’ cutting times up to 10 million times

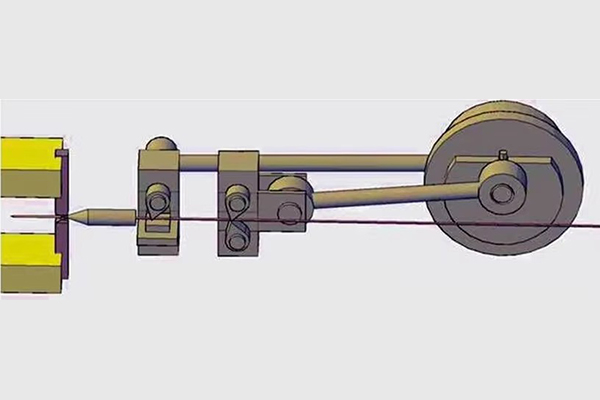

Wire feeding and anti-backing structure
1. High-precision feeding unit. Length difference can be controlled within 0.3mm
2. With unique wire feeding and anti-backing structure, the nail scraps can be completely separated from the nail shank to ensure nail quality.
Advantages of High Speed Nail Making Machine

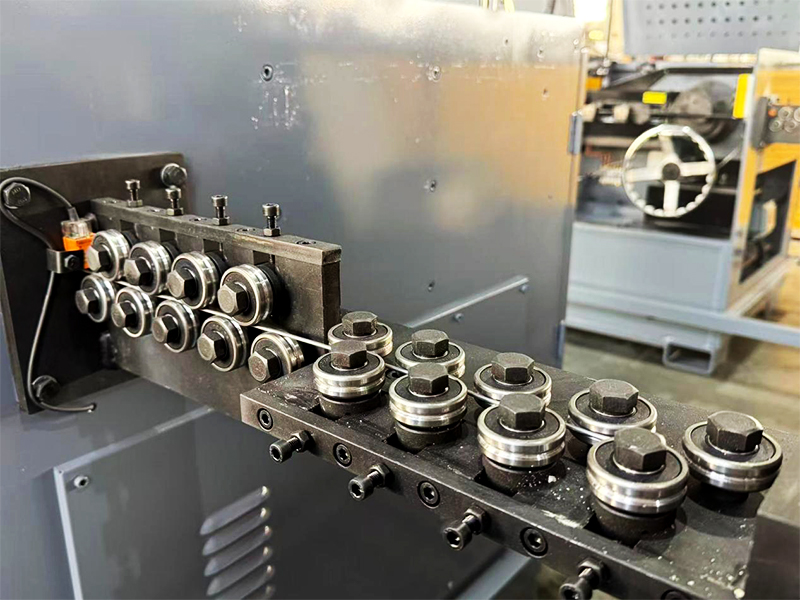

Wire straightening roller details for high speed nail making machine
Symmetrical layout, uniform stress on steel wire
Eliminate wire bending, improve finished nail quality
Adapt to continuous high-speed running

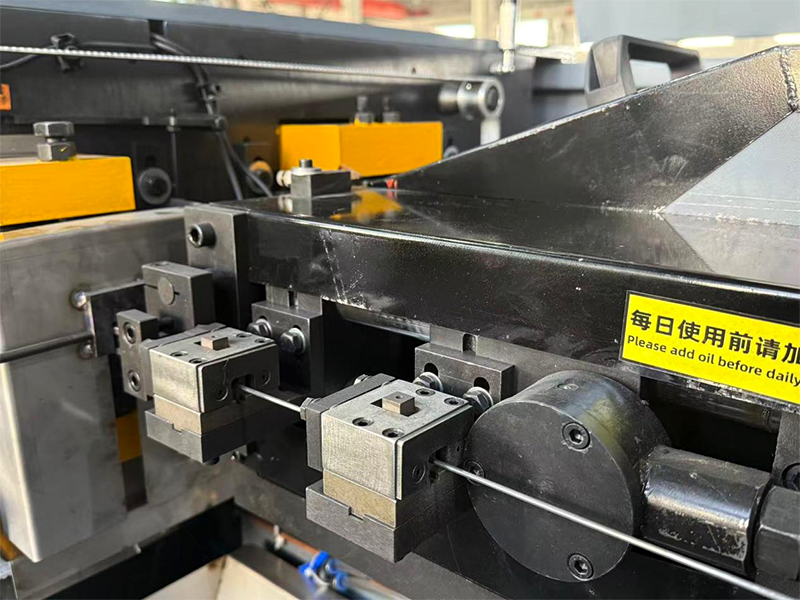

High-efficiency Wire Feeding Box
Precision guide structure, uniform wire feeding
Anti-jamming design, reduce downtime
Sealed & dustproof structure, easy maintenance
High adaptability for different wire specifications

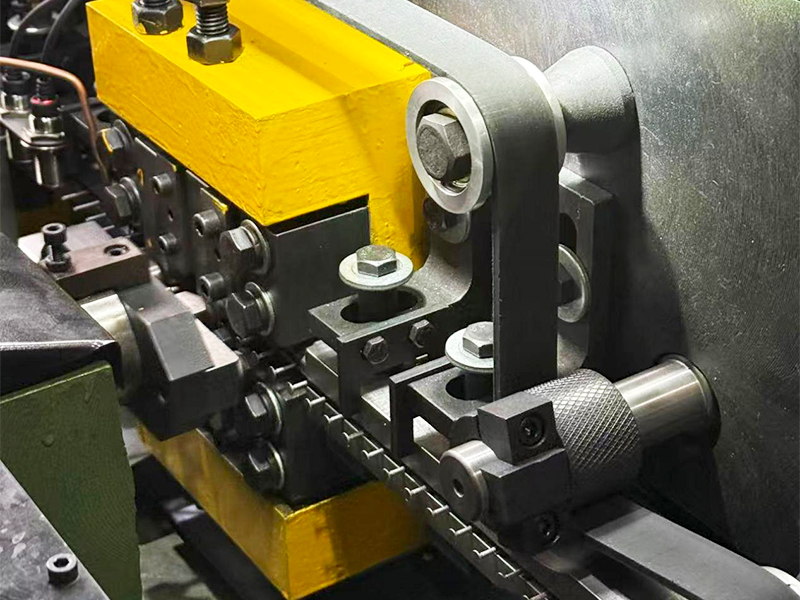

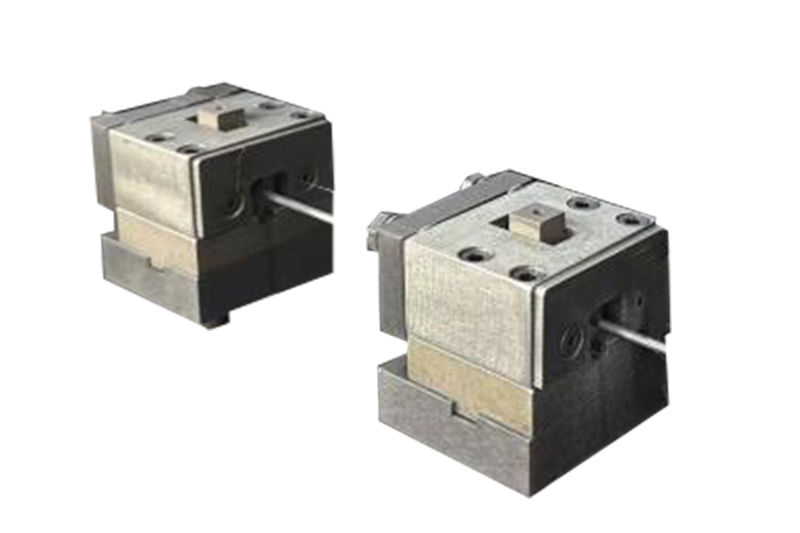

High Precision Double Clamping Mold
Symmetrical double clamp design, strong holding force
Hardened material, anti-wear & long service life
Accurate positioning, ensure neat nail shape
Adapt to high-speed continuous operation

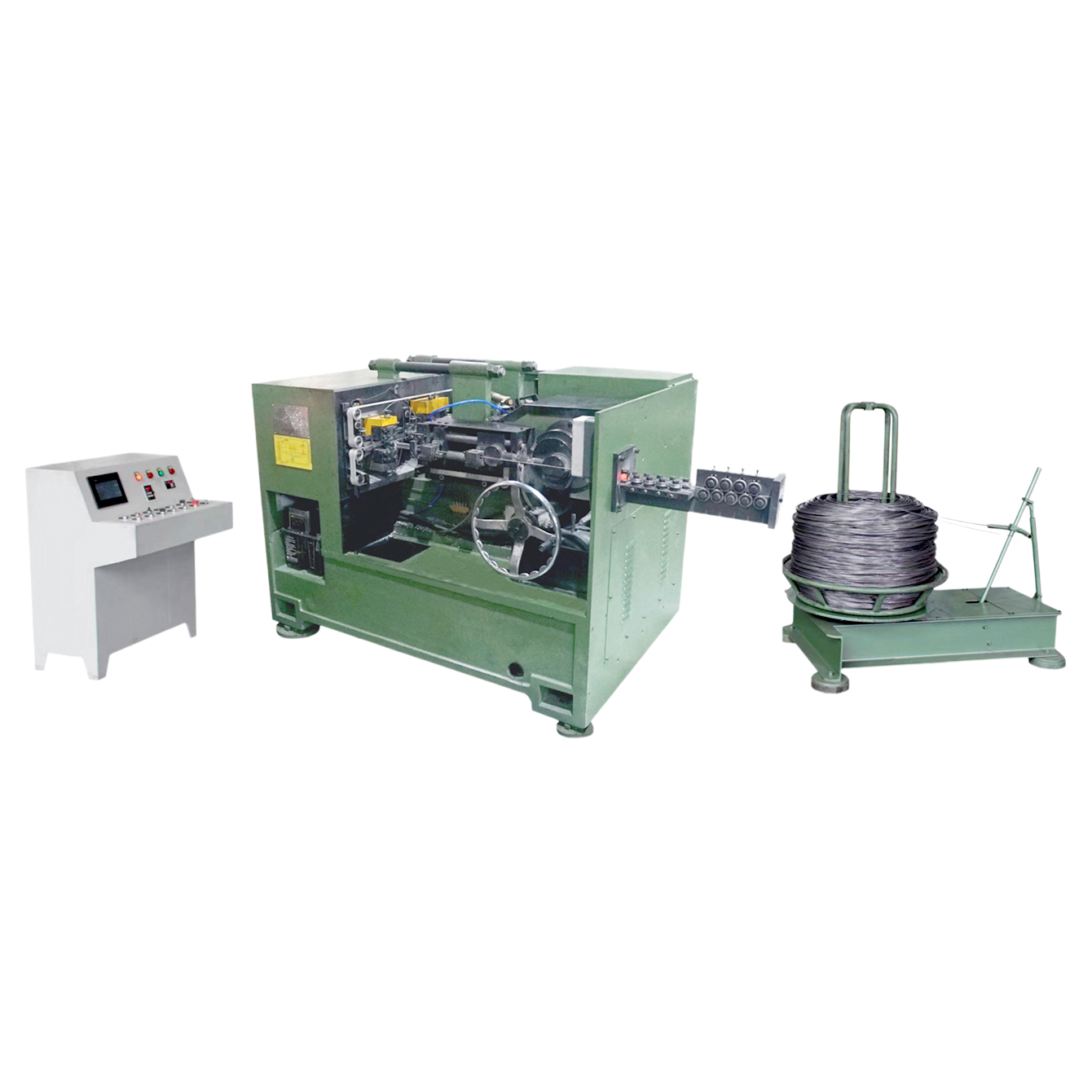

Technical Specifications of High Speed Nail Making Machine
| Power Supply(v) | AC380V | Speed(PCS/minute) | 850(PCS/minute) |
| Total Power(kw) | 7KW | Lubrication System | 32#Gear Oil |
| Diameter of Nail(mm) | φ1.8-2.5mm | Total Weight(KG) | 3200KG |
| Length of Nail(mm) | 25-70mm | Overall Dimension(mm) | 1850x1100x1100mm |
| Power Supply(v) | AC380V | Speed(PCS/minute) | 800(PCS/minute) |
| Total Power(kw) | 7KW | Lubrication System | 32#Gear Oil |
| Diameter of Nail(mm) | φ1.8-3.5mm | Total Weight(KG) | 3200KG |
| Length of Nail(mm) | 40-90mm | Overall Dimension(mm) | 1850x1100x1100mm |
| Power Supply(v) | AC380V | Speed(PCS/minute) | 550(PCS/minute) |
| Total Power(kw) | 9KW | Lubrication System | 32#Gear Oil |
| Diameter of Nail(mm) | φ＜4.5mm | Total Weight(KG) | 3300KG |
| Length of Nail(mm) | 75-130mm 30-80mm | Overall Dimension(mm) | 2100x1100x1100mm |
| Power Supply(v) | AC380V | Speed(PCS/minute) | 450(PCS/minute) |
| Total Power(kw) | 12.5KW | Lubrication System | 32#Gear Oil |
| Diameter of Nail(mm) | φ＜5.5mm | Total Weight(KG) | 3500KG |
| Length of Nail(mm) | 130-160mm | Overall Dimension(mm) | 2300x1100x1100mm |

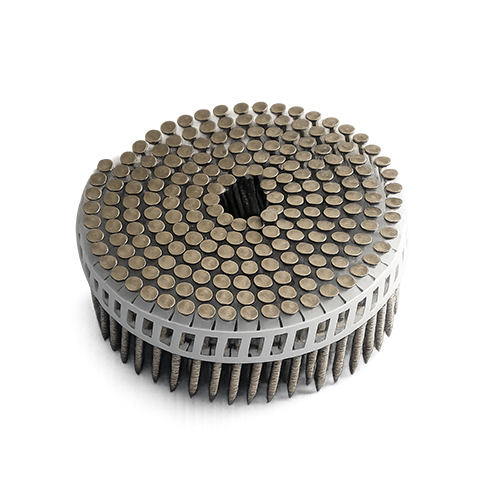

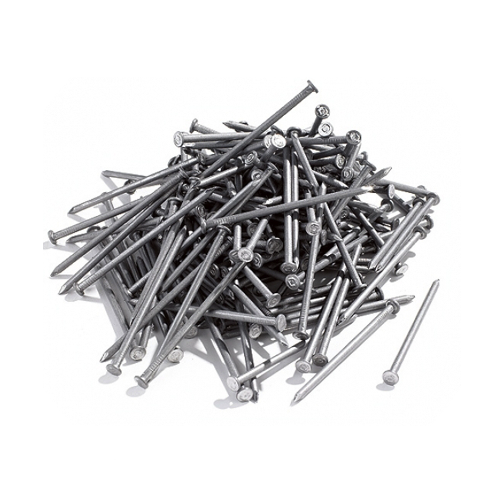

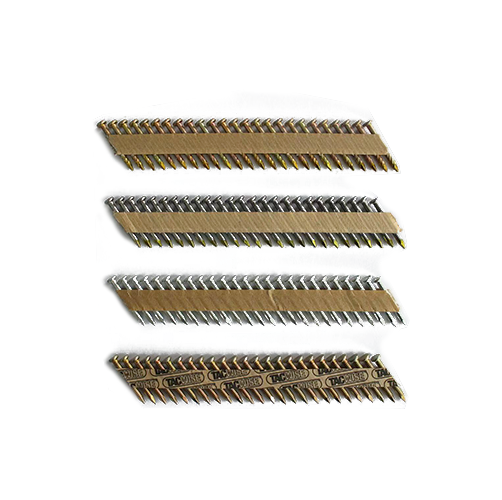

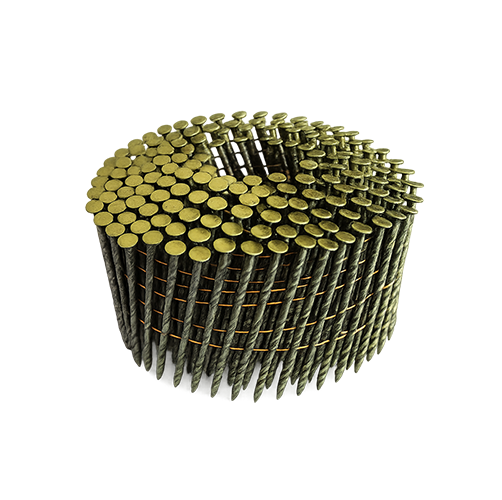

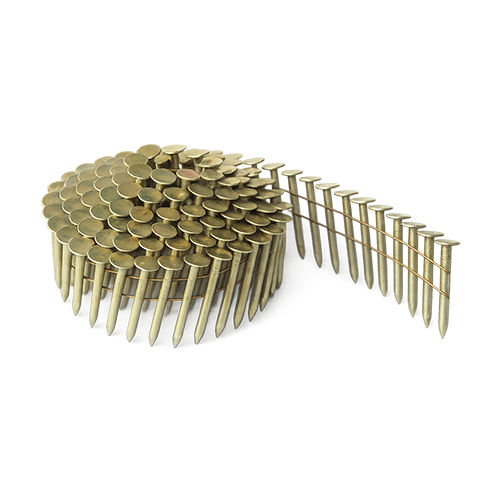

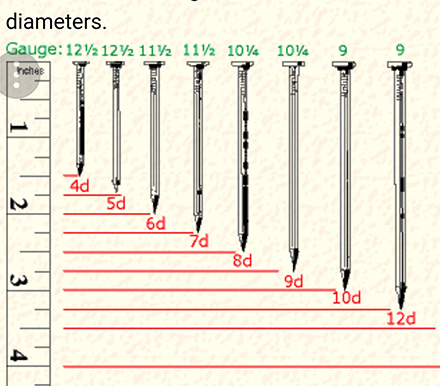

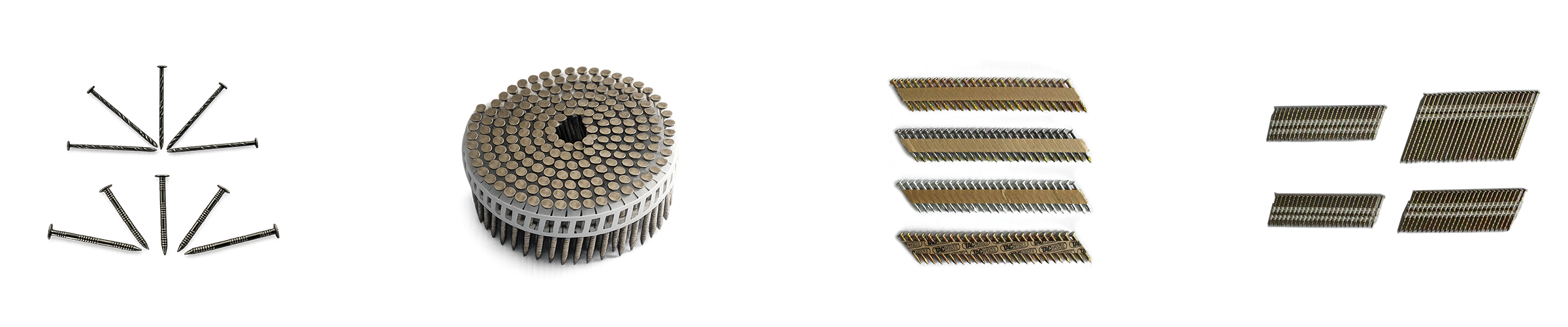

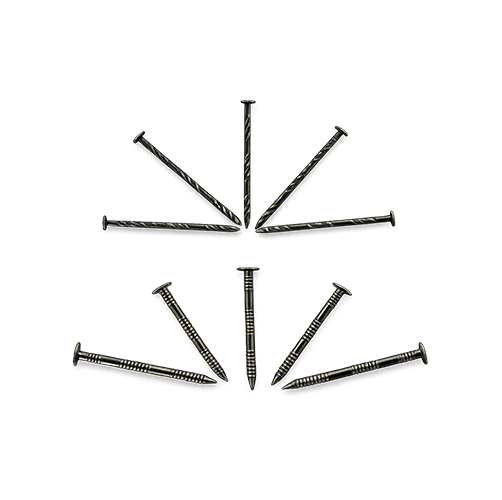

Finished Products

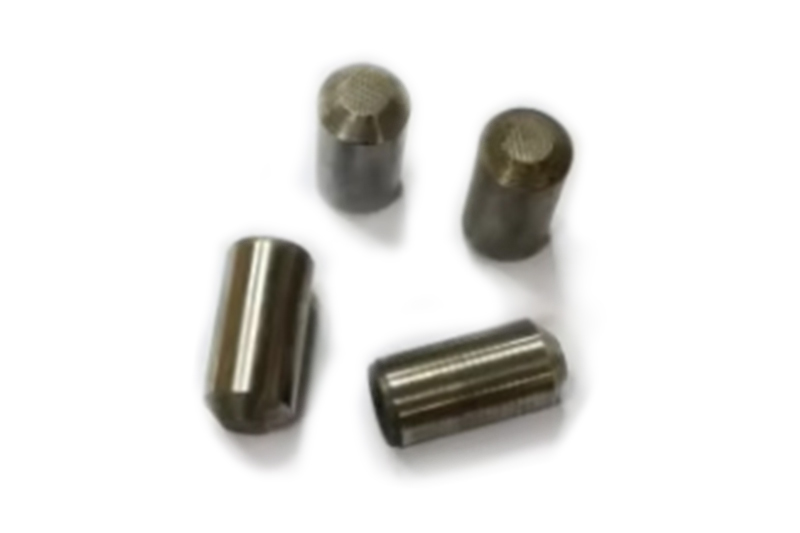

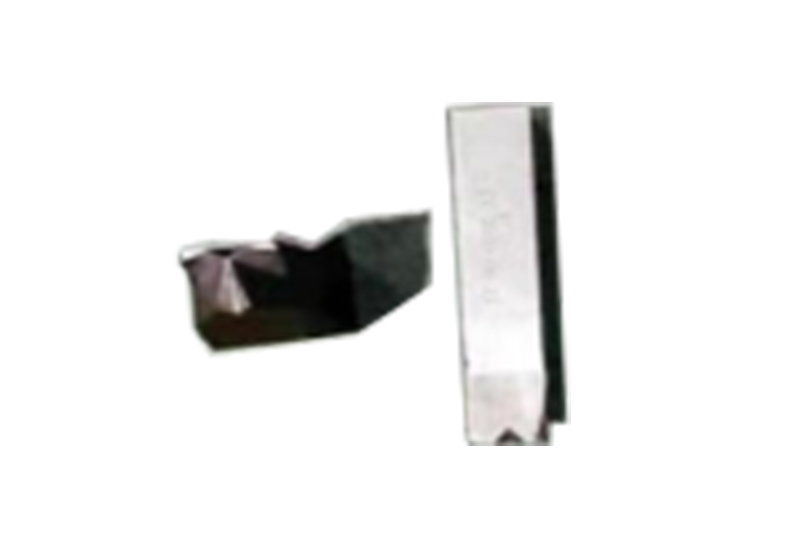

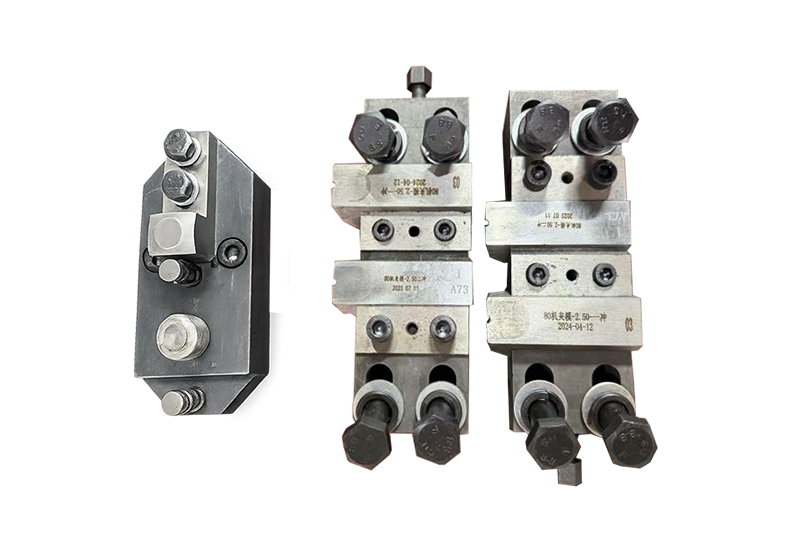

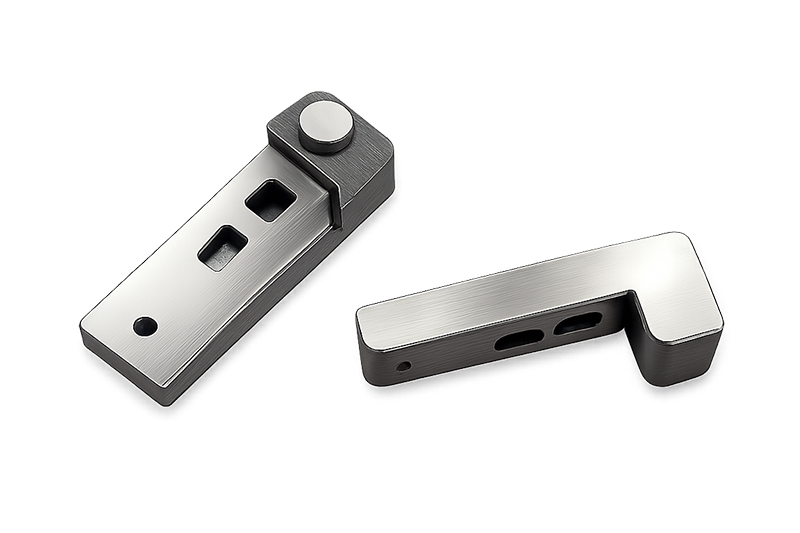

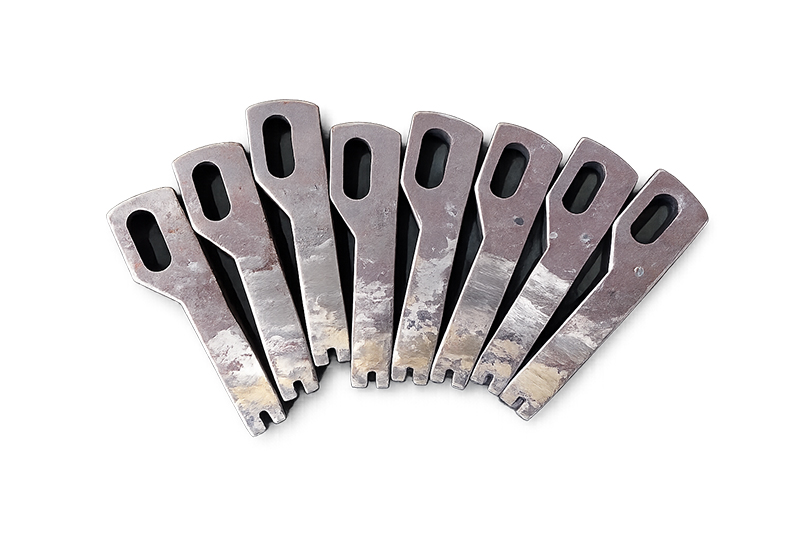

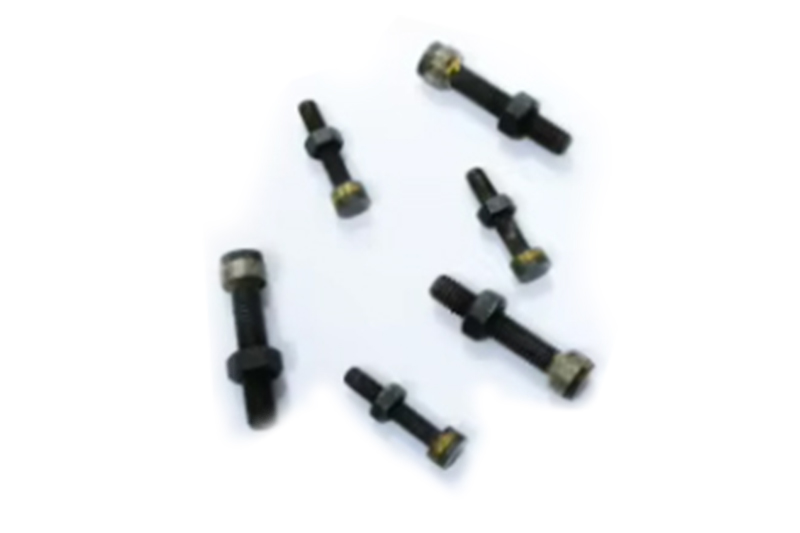

Accesories & Spare Parts We Supply
Factory & Production
Certificates
Global Project Cases
High Speed Nail Making Machine for Global Distributor
A leading construction fastener manufacturer in Eastern Europe was experiencing increasing demand for common nails and collated nails from local distributors and construction companies.
High Speed Nail Making Machine for Global Wholesaler
A large furniture manufacturer in Southeast Asia required a reliable source of plastic strip nails for automated assembly lines.
High Speed Nail Making Machine for Global Manufacturer
A pallet and wooden packaging manufacturer in South America was looking to expand its production capacity to serve export markets.
High Speed Nail Making Machine for Global Supplier
A fastener supplier serving the construction industry across the Middle East sought to expand into roofing nail manufacturing.
High Speed Nail Making Machine for Global Factory
A large furniture manufacturer in Southeast Asia required a reliable source of plastic strip nails for automated assembly lines.
High Speed Nail Making Machine for Global Manufacturer
A pallet and wooden packaging manufacturer in South America was looking to expand its production capacity to serve export markets.
High Speed Nail Making Machine for Global Supplier
A fastener supplier serving the construction industry across the Middle East sought to expand into roofing nail manufacturing.
High Speed Nail Making Machine for Global Factory
An entrepreneur in Africa planned to establish a new nail manufacturing facility to supply local distributors and construction companies.
High Speed Nail Making Machine for Global Distributor
A growing construction nail manufacturer in Central Europe needed to increase production capacity to meet rising demand from wholesalers and building material distributors.
High Speed Nail Making Machine for Global Manufacturer
A long-established fastener manufacturer in Southeast Asia wanted to modernize its nail production facility to improve efficiency and reduce operating costs.
High Speed Nail Making Machine for Global Factory
A pallet manufacturer serving logistics and warehouse companies required a reliable source of high-quality coil nails.
High Speed Nail Making Machine for Global Supplier
A fastener exporter supplying multiple countries across South America sought to increase production volume while maintaining product quality.
High Speed Nail Making Machine for Global Distributor
A furniture manufacturer specializing in mass-produced cabinets and office furniture required a stable supply of plastic strip nails.
High Speed Nail Making Machine for Global Supplier
A construction material supplier in Africa planned to expand into roofing nail production to support local infrastructure projects.
High Speed Nail Making Machine for Global Manufacturer
A major hardware distributor in the Middle East sought to establish its own nail manufacturing operation.
High Speed Nail Making Machine for Global Factory
A multinational fastener supplier serving construction, pallet, and furniture industries sought to establish a dedicated collated nail production facility.
High Speed Nail Making Machine for Global Manufacturer
A fastener manufacturer in Central Asia wanted to improve production quality while expanding output capacity.
High Speed Nail Making Machine for Global Supplier
A pallet and wooden packaging manufacturer in South America was looking to expand its production capacity to serve export markets.
High Speed Nail Making Machine for Global Distributor
A packaging company producing wooden crates and export packaging materials required large volumes of coil nails.
High Speed Nail Making Machine for Global Manufacturer
A European supplier specializing in furniture fasteners required higher precision and consistency in nail production.
Our Exhibition
High Speed Nail Making Machine FAQ
-
How long does it take to switch nail specifications?
If only adjusting nail length with unchanged wire diameter: 3~5 minutes.If wire diameter also needs modification, around 20 mins is required to adjust feeding assembly and clamping die
-
Service life of nail cutter, clamping die and punch?
Normally 2 months, service life varies based on operator’s proficiency.
-
Raw material for cutters, clamping dies & punches?
Alloy steel & tungsten carbide.
-
What technical support is available during machine malfunction?
Online guidance & real-time video technical support are available.
-
What’s your shipping way & Incoterm?
Sea freight for whole machine for cost-saving; air freight for urgent order. Normally FOB/CIF terms, negotiable as order request.
