High-speed Thread Rolling Machine Manufacturer

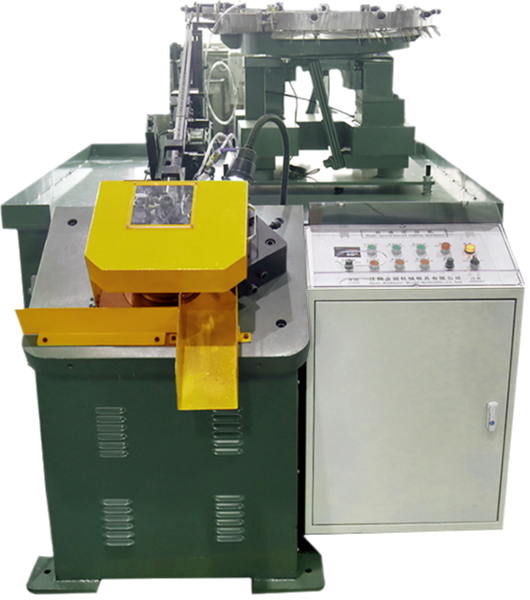

High-speed Thread Rolling Machine GGS-2000
Thread Dia
1.8-3.8mm
Nail Length
＜100mm
Power
9kW
Speed
2600pcs/minute
Weight
1500 kg
What is a High-speed Thread Rolling Machine?
A High-Speed Thread Rolling Machine is a specialized piece of equipment used to create precise threads on nails, screws, bolts, and other fasteners through a cold-forming process. Unlike traditional cutting methods, thread rolling forms threads by applying pressure to the workpiece using hardened rolling dies, resulting in stronger, more durable, and more accurate threads.
In nail manufacturing, a high-speed thread rolling machine is widely used to produce screw nails, ring shank nails, and other threaded fasteners required by the construction, furniture, pallet, and packaging industries. The machine ensures consistent thread quality, high production efficiency, and minimal material waste.
Technical Specifications of High-speed Thread Rolling Machine GGS-2000
| Power Supply(v) | AC380V | Diameter of Rolling Nail(mm) | 1.8-3.8 | ||
| Total Power(kw) | 9 | Lengh of Nail(mm) | <100 | ||
| Total Weight(KG) | 1500 | Speed(pcs/minute) | 2600 | ||
| Overall Dimension(mm) | 1500x1850x1600mm | ||||
Accesories and Finished Products

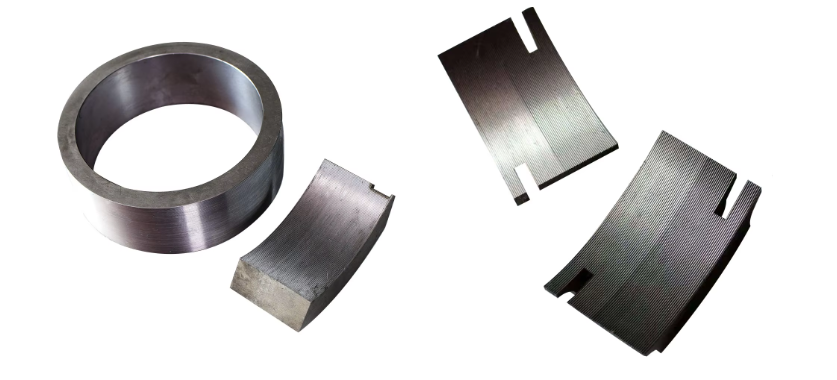

Accesories - Thread rolling die
Nail Shank Types

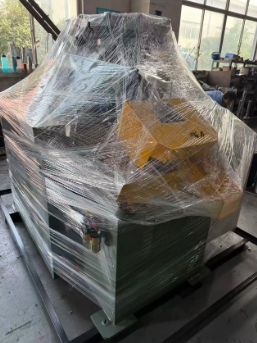

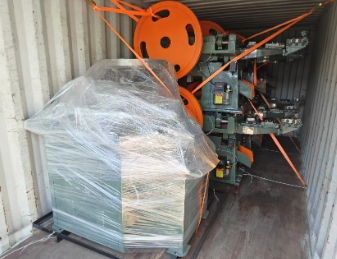

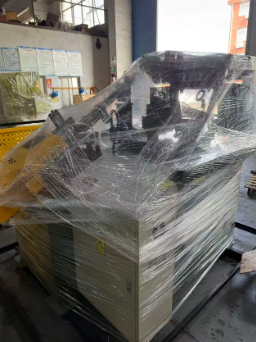

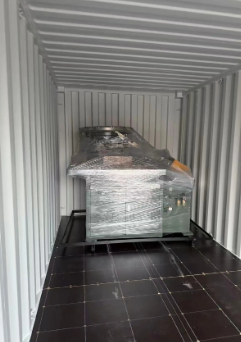

Package and Delivery
Certificates
High-speed Thread Rolling Machine GGS-2000 FAQ
-
What is the production speed of this high-speed thread rolling machine?
Rated output reaches 2600 pcs per minute. Standard ring shank nails run at full speed; custom special-shaped nails range from 2200–2500 pcs/min. The daily full-load output for 8-hour shift is 1.248 million pieces.
-
What types of nails can be produced?
It can produce anti-loose screw shank nails, ring shank nails with standard molds; we develop customized dies to produce all new-style special nails per customers’ drawings or samples.
-
Is die replacement complicated? How long does a set of dies last?
Quick-release die structure, skilled workers finish die change within 30 mins. Made of Cr12MoV alloy steel, service life is 8–12 million nails under normal working conditions, worn dies can be repaired repeatedly.
-
Do you provide installation and commissioning service?
Domestic on-site debugging is available; for overseas shipment, detailed English operation manual and free remote video guidance are supplied, plus a full set of spare wearing parts attached with the machine.
