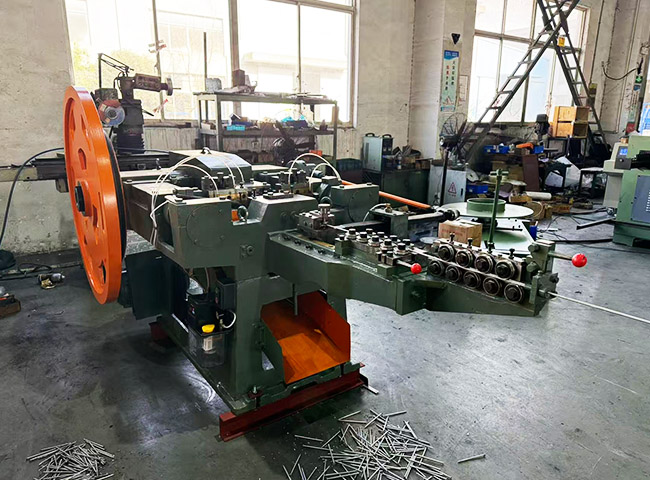

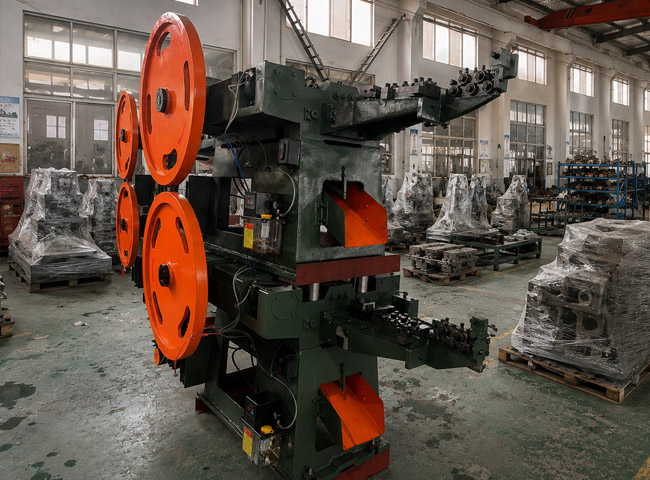

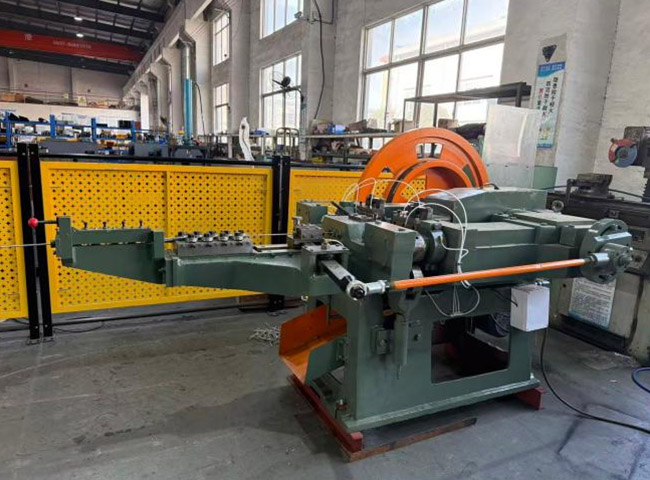

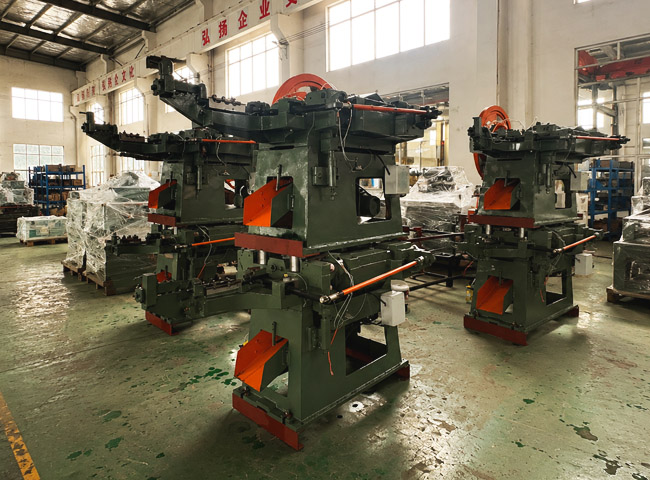

What is a Nail Making Machine ?
The Nail Making Machine is an automatic and cost-effective solution for producing various steel nails. Designed for stable operation, it is ideal for small and medium-sized nail manufacturers. Compatible with Q195 and Q235 low-carbon steel wire, it supports a wide range of nail sizes for different applications.
With easy operation and a compact design, one operator can efficiently manage multiple machines. Depending on the model, production speeds reach up to 450 pcs/min, with nail diameters from 0.9 mm to 6.0 mm and lengths up to 150 mm. Its reliable performance, low operating cost, and high productivity make it an excellent choice for modern nail production.

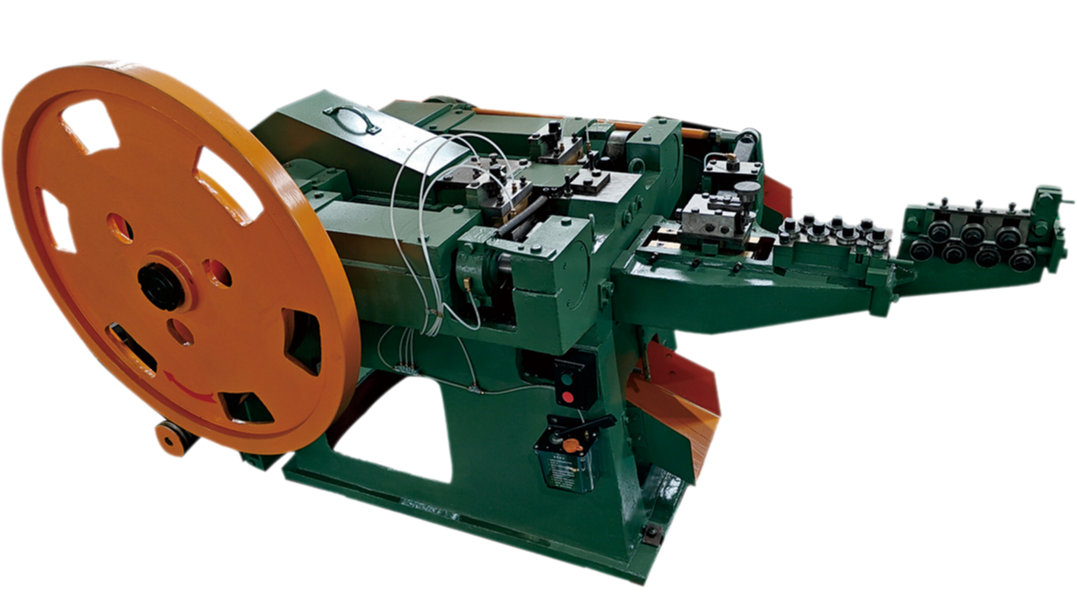

Technical Specifications of Nail Making Machine JG-D
| Parameter | Unit | 711 | 712 | 713 | 714 | 715 | 716 |
| Max. dia. of nail | mm | 1.6 | 2.8 | 3.1 | 4.5 | 5.5 | 6 |
| Min. dia. of nail | mm | 0.9 | 1.2 | 1.8 | 2.8 | 2.8 | 4.1 |
| Max. length of nail | mm | 25 | 50 | 75 | 100 | 130 | 150 |
| Min. length of nail | mm | 9 | 16 | 30 | 50 | 50 | 100 |
| Production speed | Pcs/min | 450 | 300 | 280 | 260 | 220 | 220 |
| Motor power | KW | 1.5 | 2.2 | 3 | 4 | 5.5 | 10 |
| Total weight | KG | 1200 | 1450 | 1800 | 2000 | 2600 | 5500 |
| Dimension | mm | 1500*1300*1200 | 1700*1300*1400 | 2000*1400*1400 | 2200*1600*1650 | 3200*2000*1700 | 3220*1838*1545 |

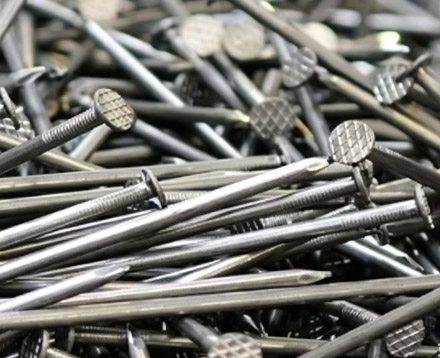

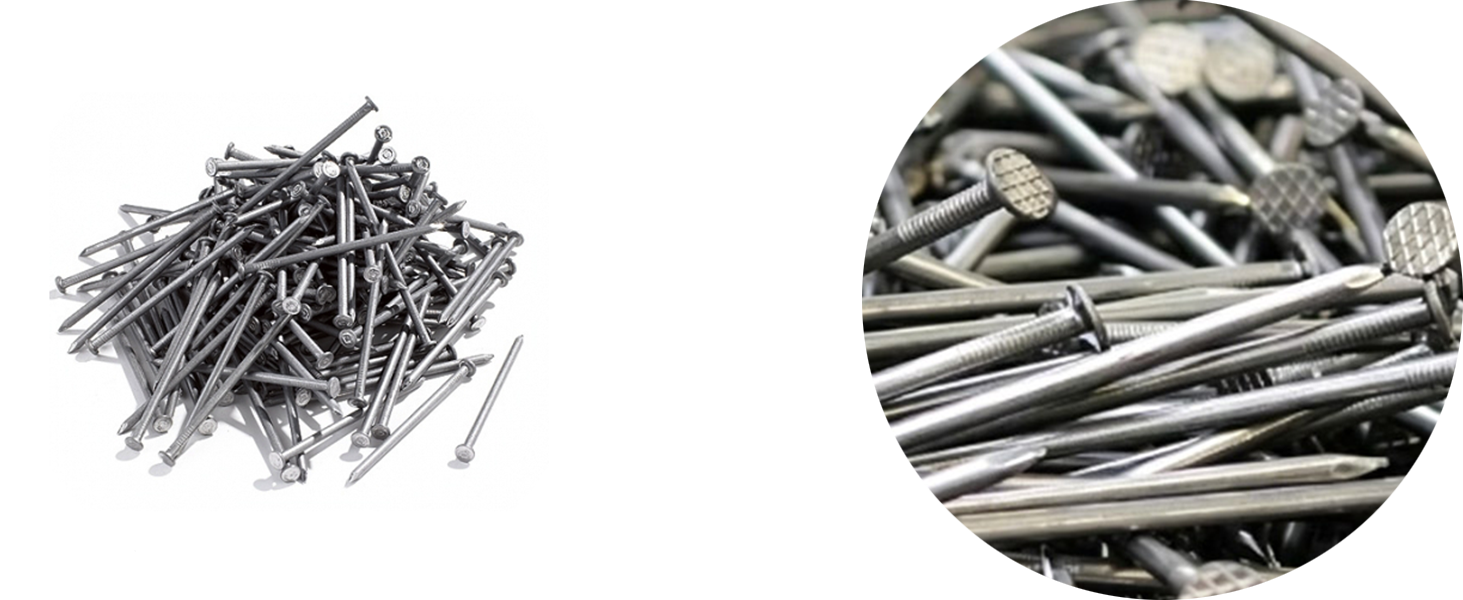

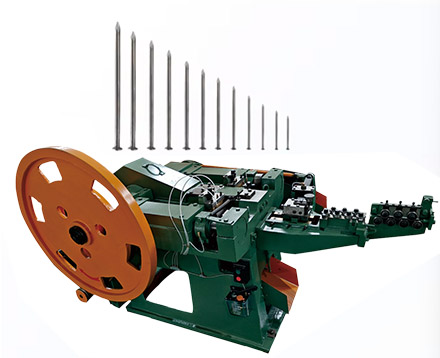

Finished Products of Nail Making Machine JG-D
Nail Point Types
Accesories & Spare Parts We Supply
Application Industry of Nail Making Machine JG-D

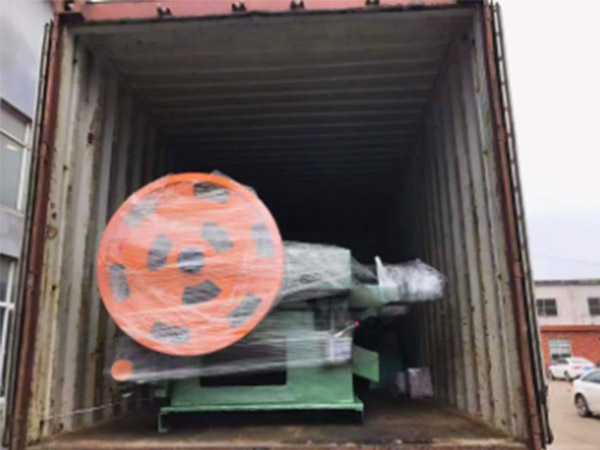

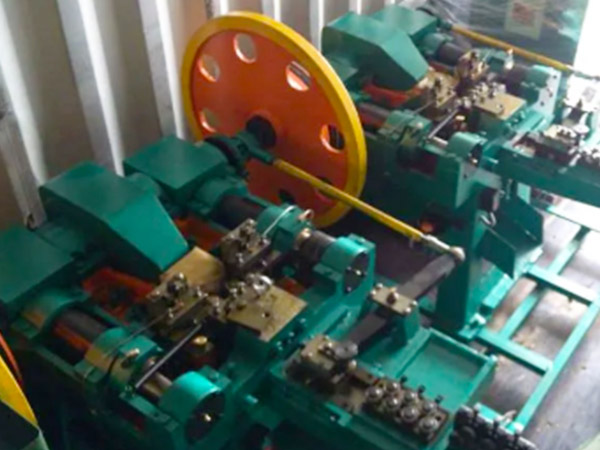

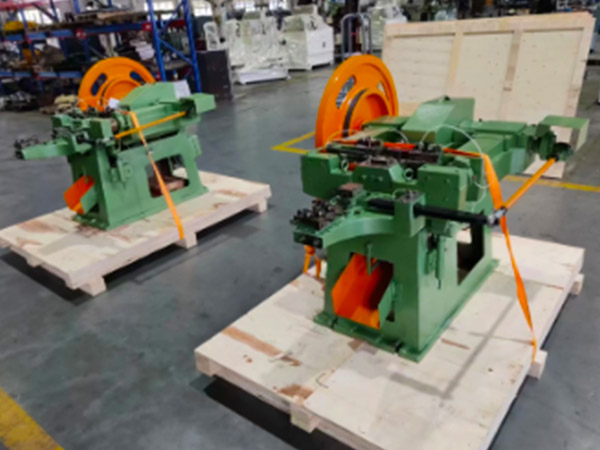

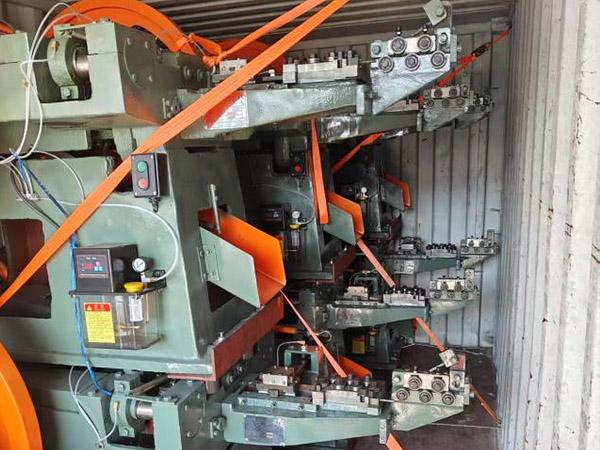

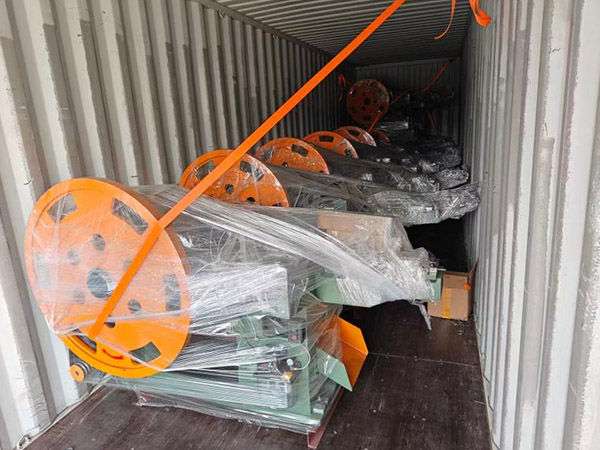

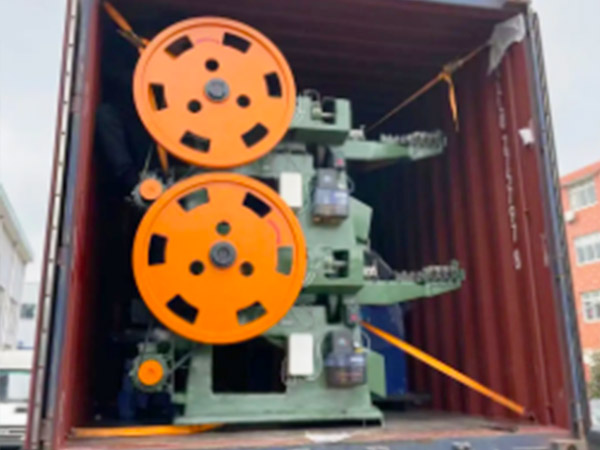

Package and Delivery
Certificates
Nail Making Machine JG-D FAQ
-
What steel wire is suitable for this nail machine?
Applicable for Q195, Q235 low carbon steel wire; wire diameter 1.2mm–6.0mm, can produce nails length 25mm–150mm.
-
What’s the power supply & machine size?
Standard 380V 50Hz three-phase power; can customize 220V/415V 60Hz for export.
-
Service life of nail cutter, clamping die and punch?
Normally 2 months, service life varies based on operator’s proficiency.
