Paper Strip Nail Machine Manufacturer

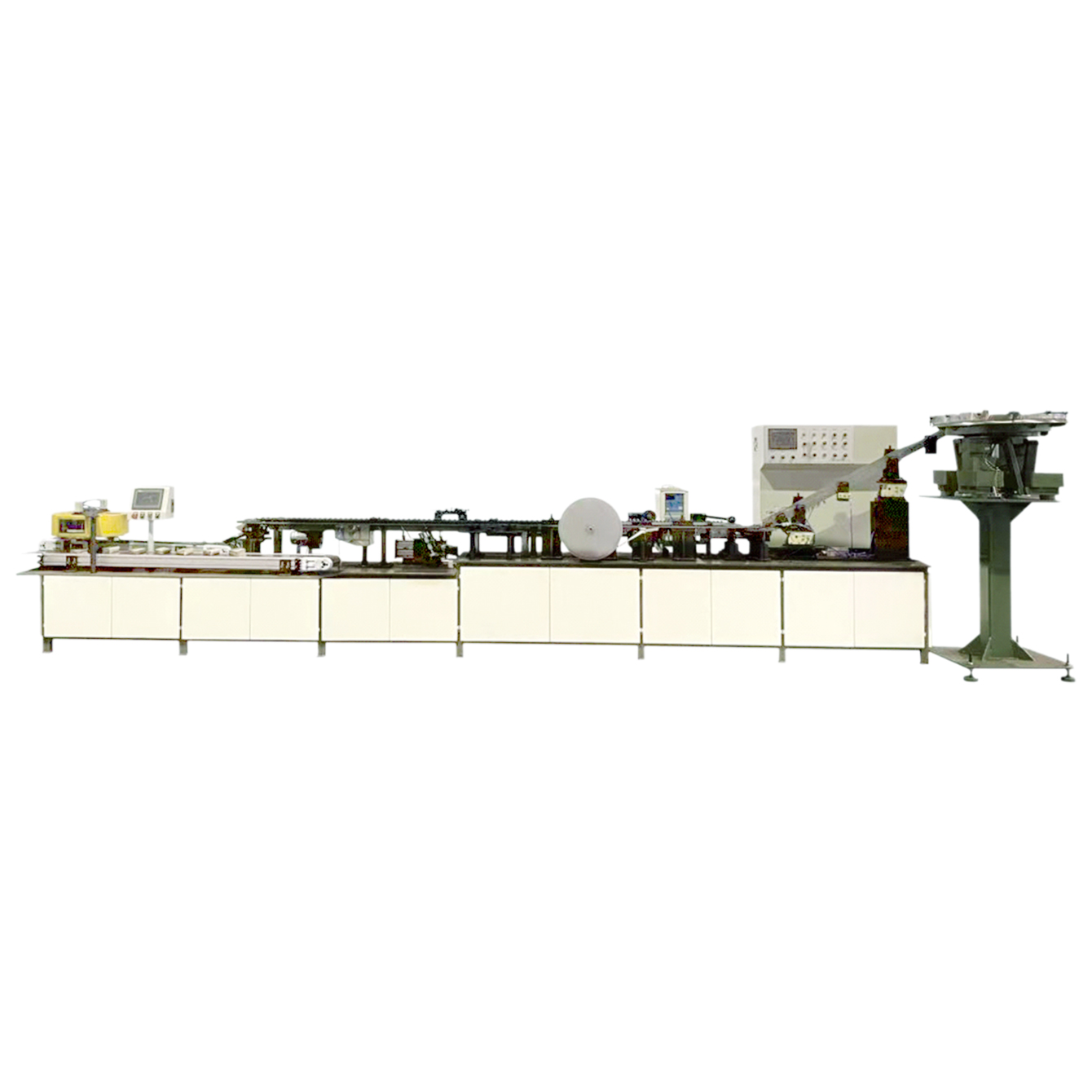

Paper Strip Nail Machine JG-ZD

The only domestic manufacturer specializing in complete flat rigid strip nail machines with exclusive core technology.

Produce flat straight nail strips instead of coils. Compatible with various nail guns, easy for storage and transport.

High-speed automatic sorting & feeding to boost production output.

Closed cooling circuit stabilizes paper forming, high yield and low power consumption.

Uniform alignment and strong adhesive bonding to ensure stable finished nail strips.

Intuitive PLC touchscreen and ergonomic layout for simple and labor-saving operation.

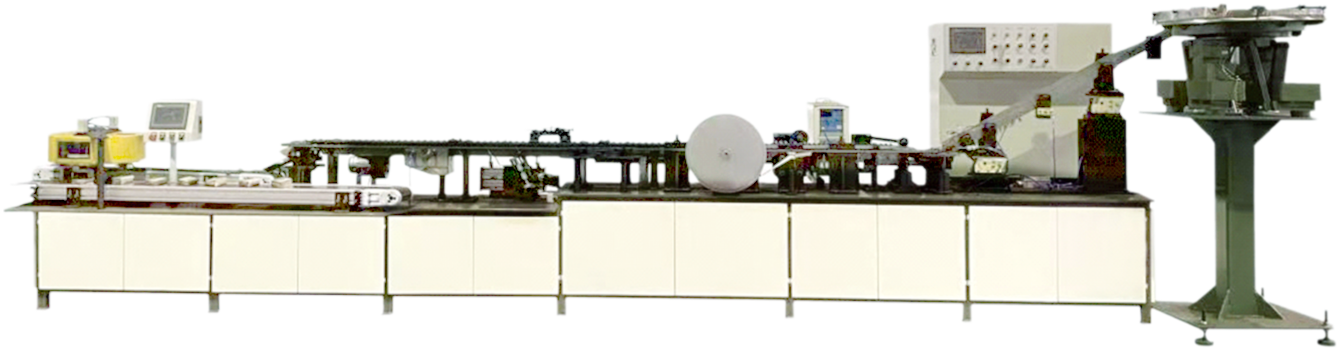

Paper-Strip-Nail-Machine

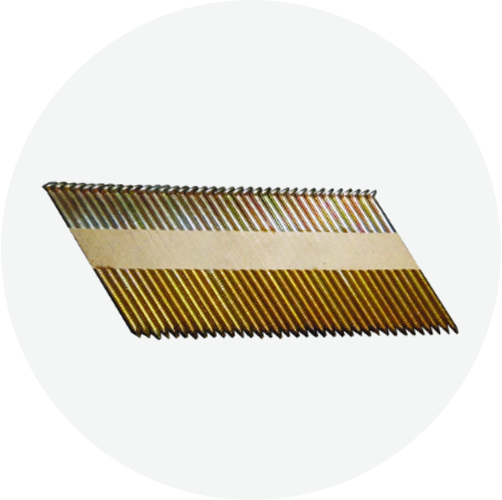

paper-nails

Capacity

1200 pcs/min

Nail Length

50-100mm

Nail Dia

2.5-4.0mm

Power

12kW

Weight

2000 kg

Paper Strip Nail Machine JG-ZD Video

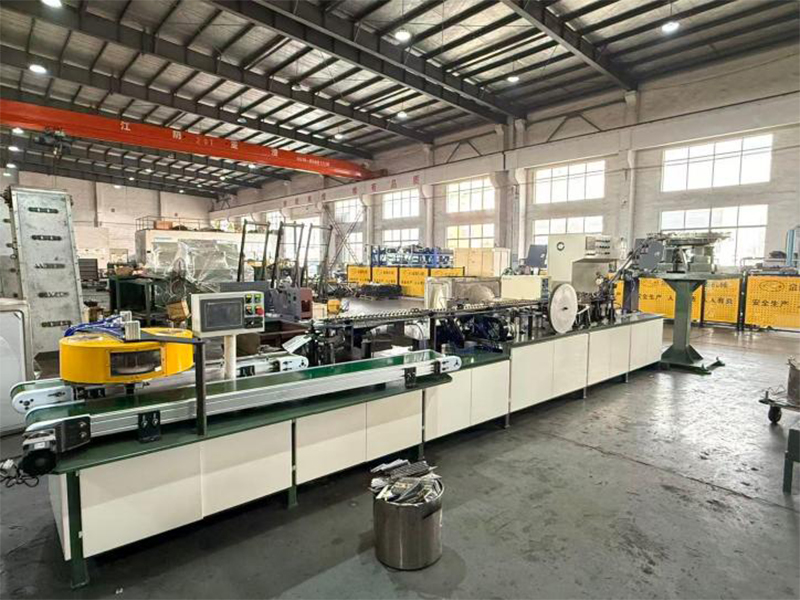

Paper-Strip-Nail-Machine4

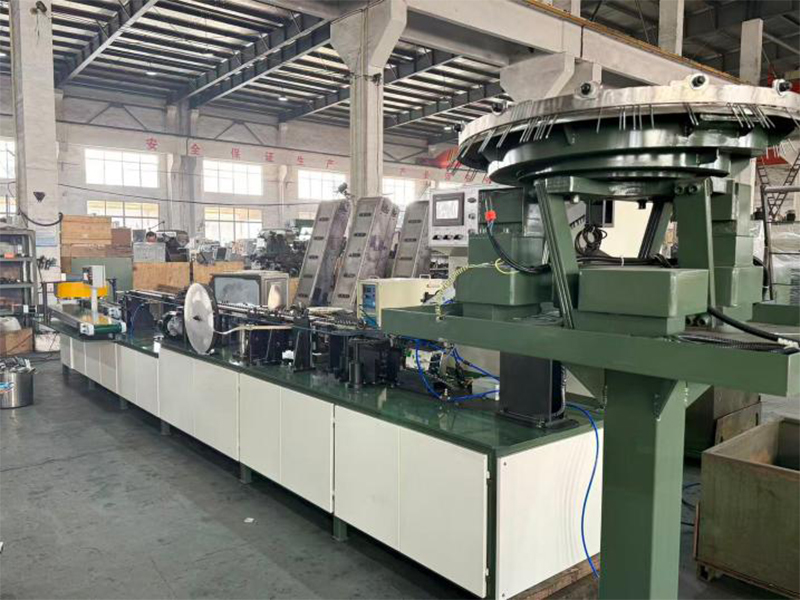

Paper-Strip-Nail-Machine-2

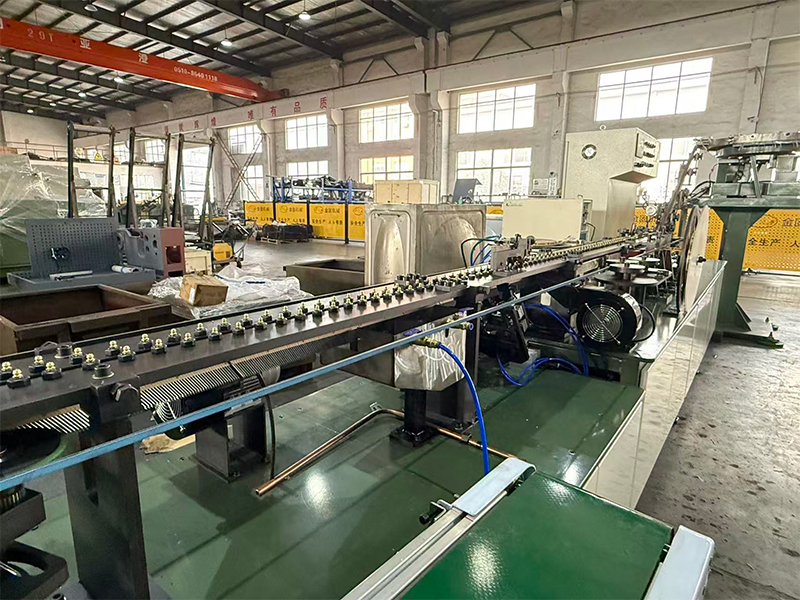

Paper-Strip-Nail-Machine-1

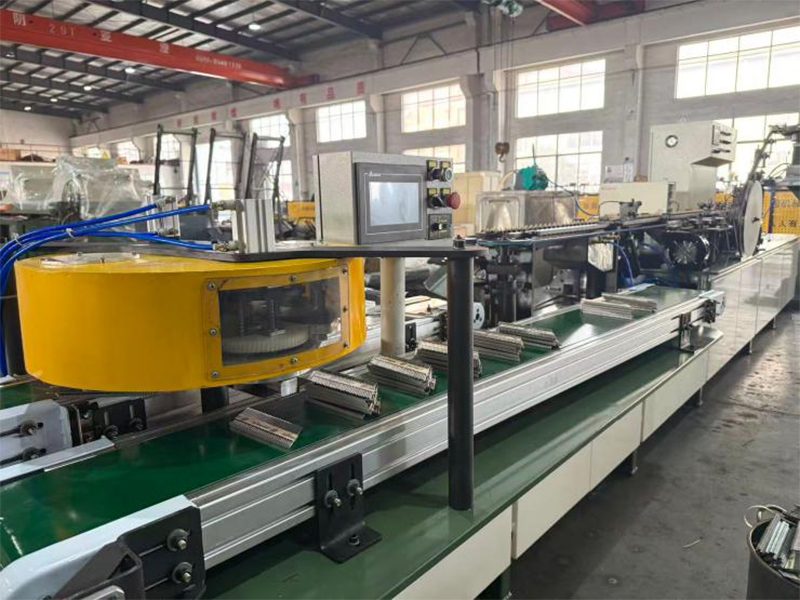

Paper-Strip-Nail-Machine-3

What is a Paper Strip Nail Machine?

A Paper Strip Nail Machine is specialized equipment designed to automatically arrange and collate individual nails into paper strip nail assemblies for use in pneumatic framing nailers. Paper strip nails are widely used in construction, timber framing, roofing, pallet manufacturing, and other applications that require fast, efficient, and reliable fastening.


The machine automatically aligns nails at a specific angle, typically 28° to 34°, and bonds them together using durable paper strips. Compared with loose nails, paper collated nails offer faster installation, improved productivity, and reduced downtime on construction sites.

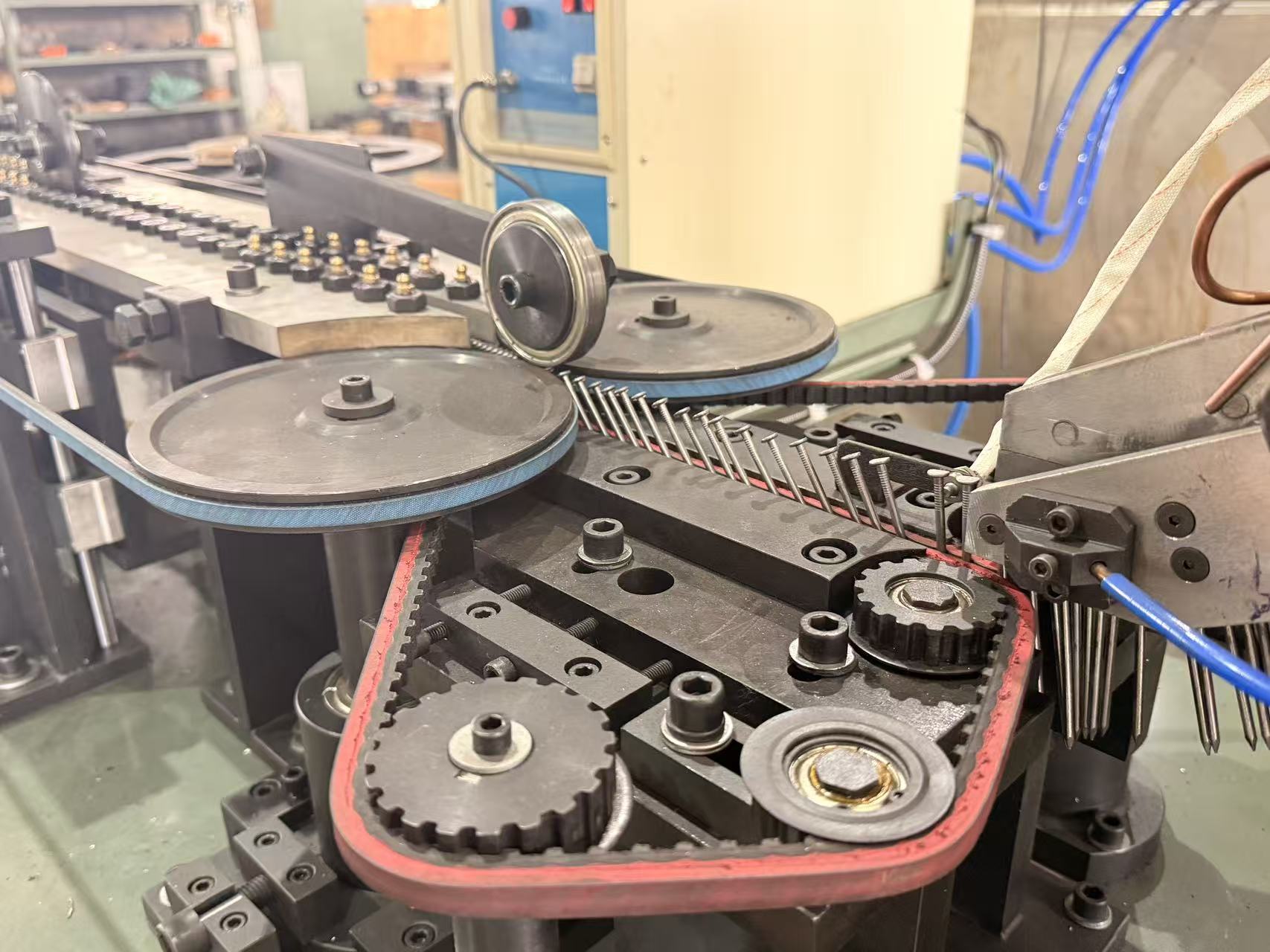

Paper-Strip-Nail-Machine detail6

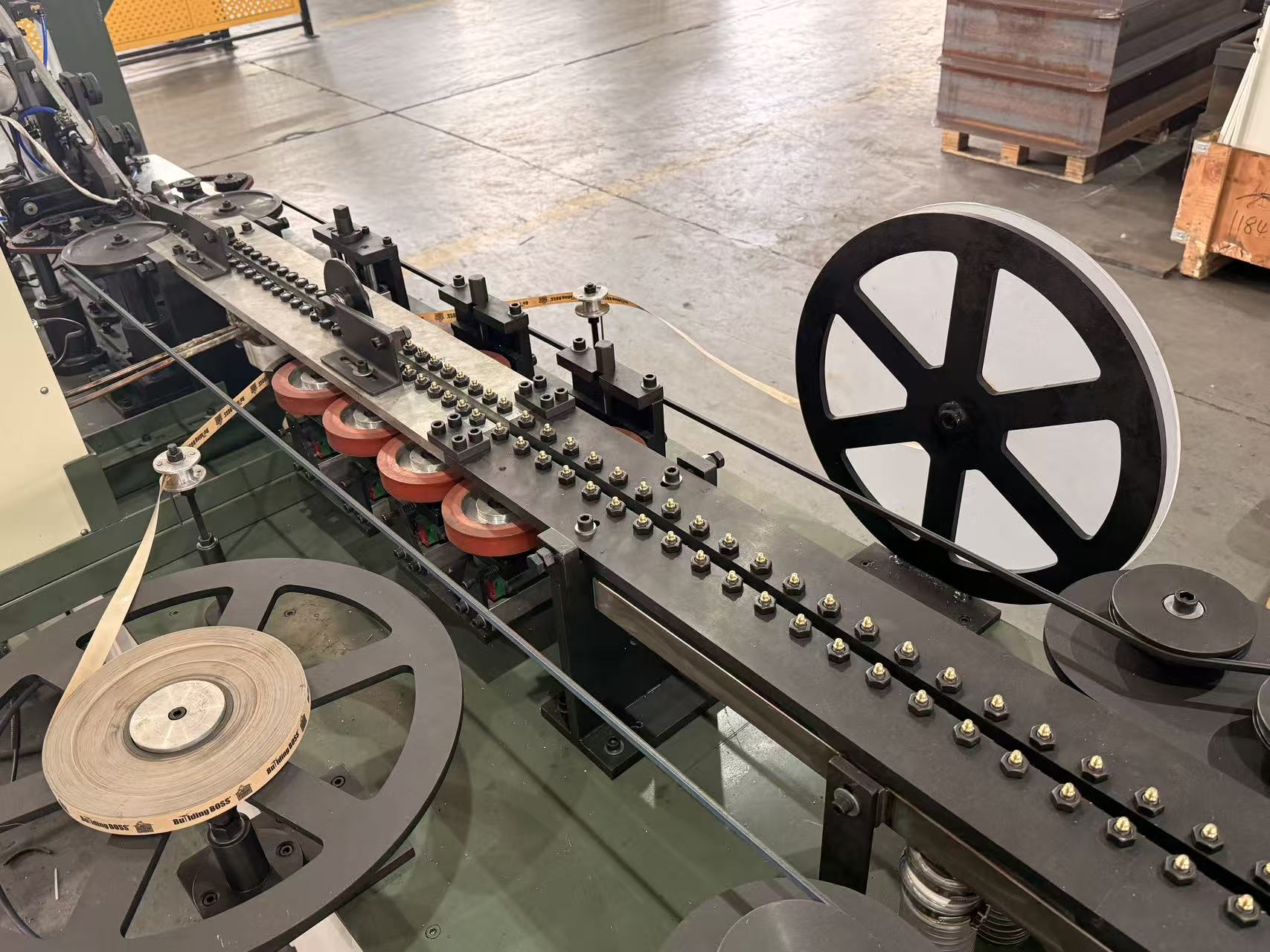

Paper-Strip-Nail-Machine detail8

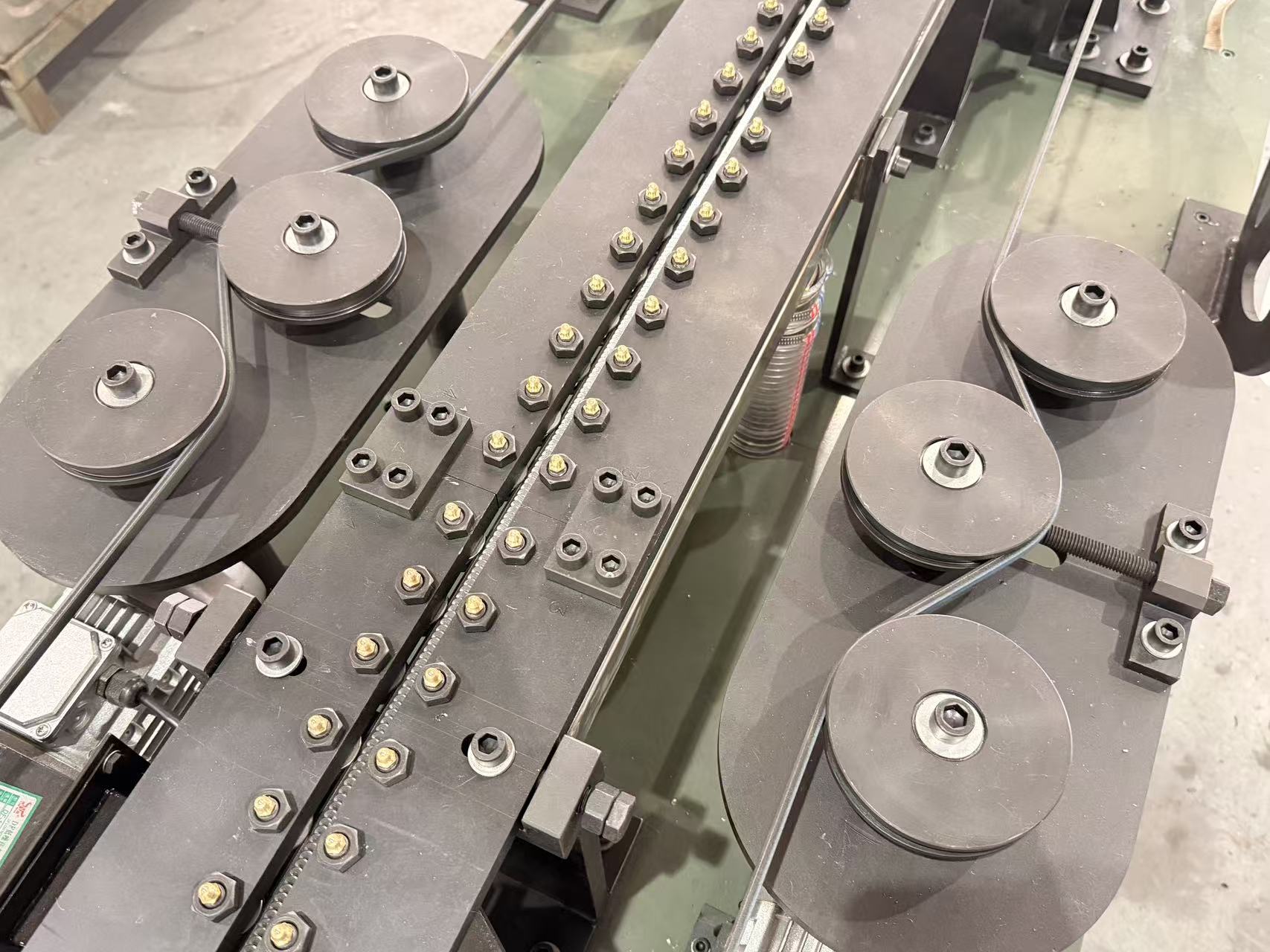

Paper-Strip-Nail-Machine detail7

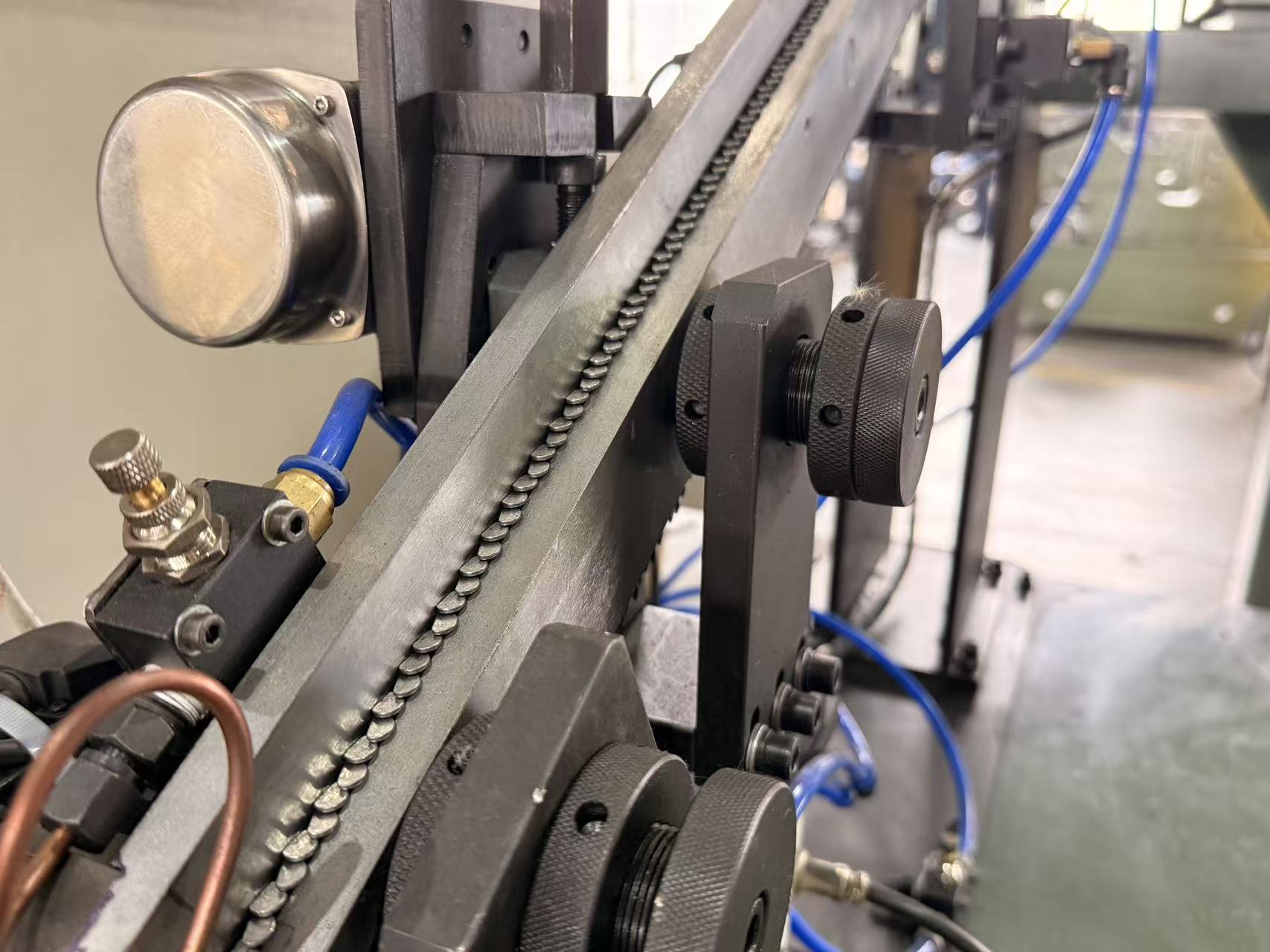

Paper-Strip-Nail-Machine detail5

Technical Specifications of Paper Strip Nail Machine JG-ZD

Power Supply (V)3 Phase AC380Nail Length (mm)50-100
Total Power (kW)12Rolling Nail Dia. (mm)2.5-4.0
Air Pressure (kg/m²)6Nail Angle (°)28-34
Machine Weight (kg)2000Production Speed (pcs/min)1200
Overall Dimensions (mm)6000 × 1200 × 2000

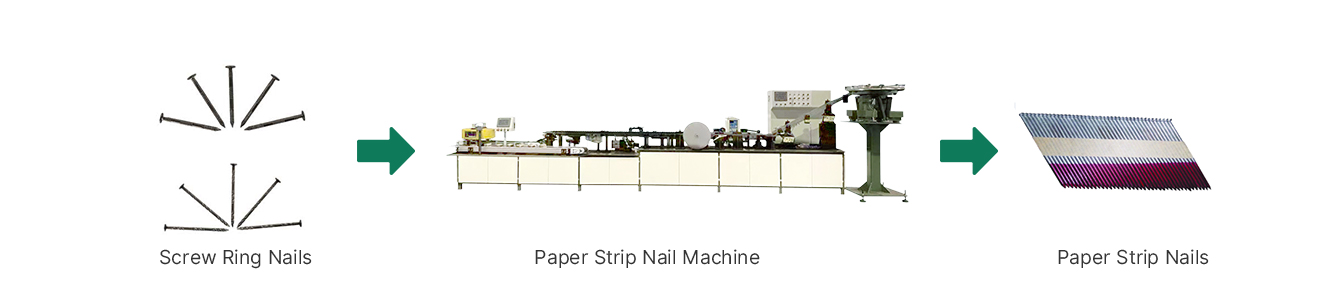

Working Process of Paper Strip Nail Machine JG-ZD

Working-Process-of-Paper-Strip-Nail-Machine

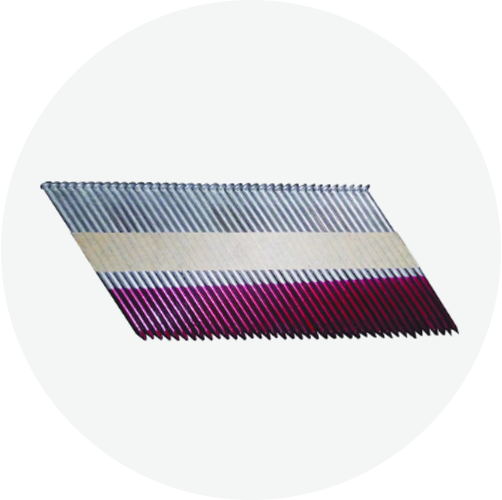

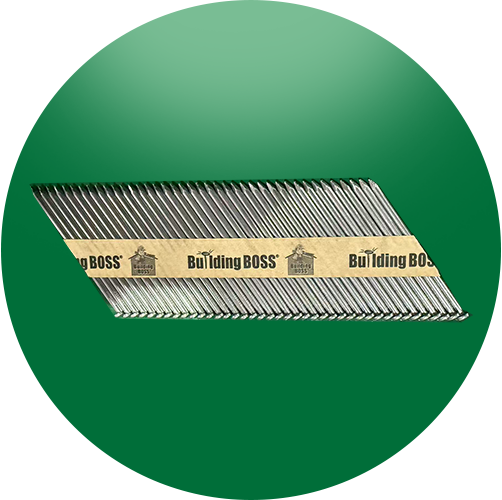

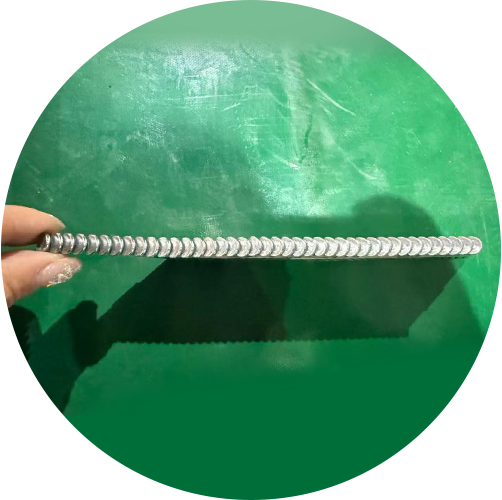

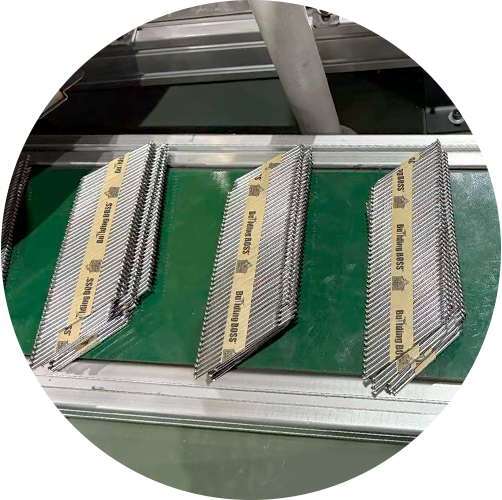

Finished Products of Paper Strip Nail Machine JG-ZD

Accesories & Spare Parts We Supply

red-belt

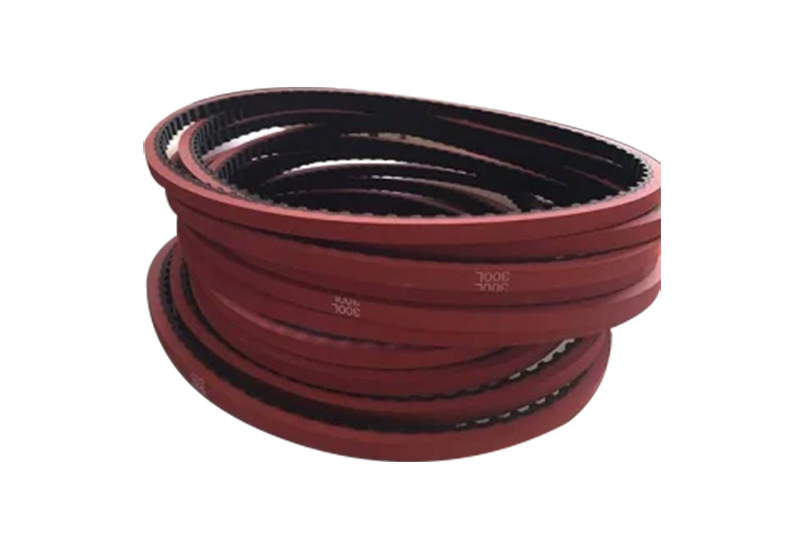

Red belt
blue-belt

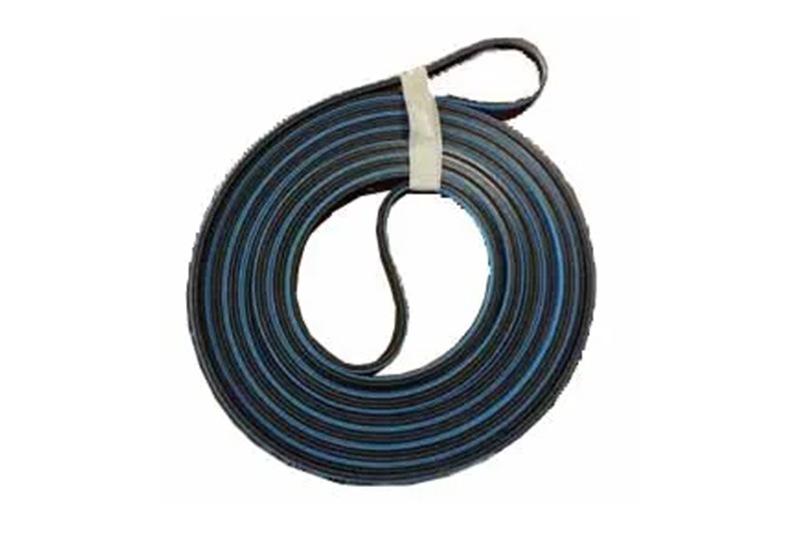

Blue belt

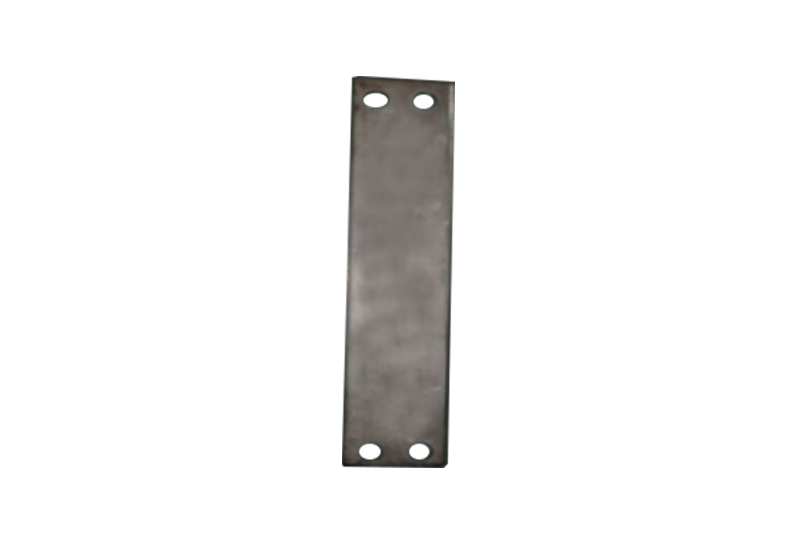

Vibrating-plate
Vibrating plate

Application Industry of Paper Strip Nail Machine JG-ZD

Construction hardware, furniture manufacturing, product packaging, daily hardware processing.

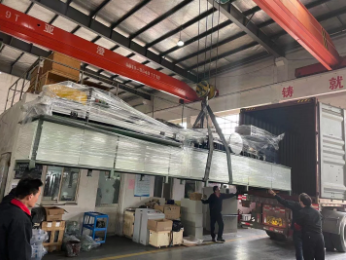

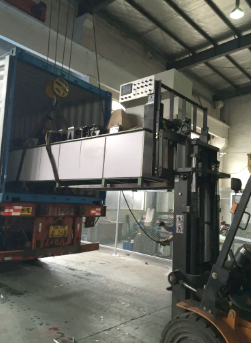

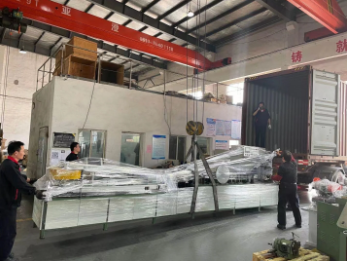

Package and Delivery

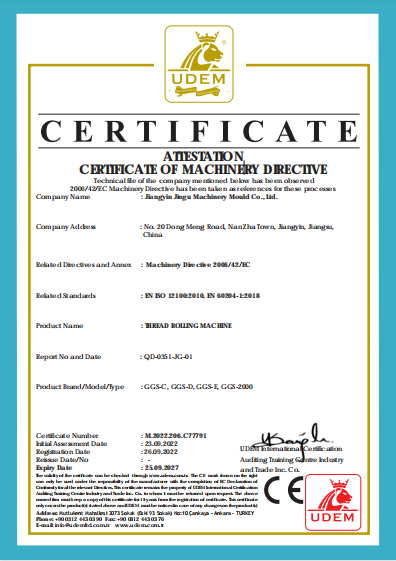

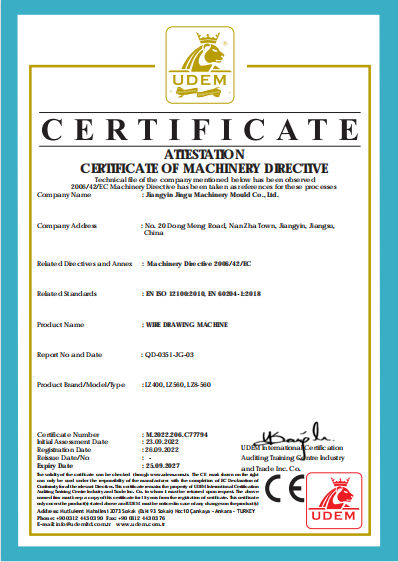

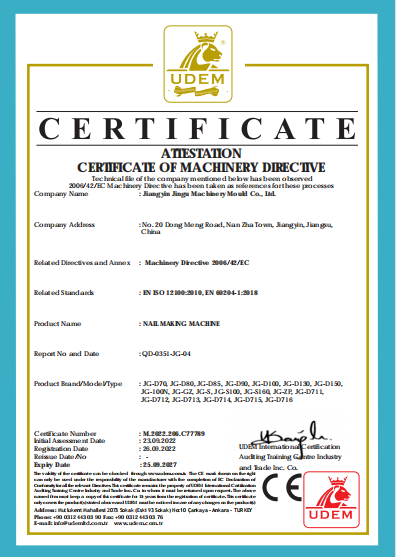

Certificates

bg3

+㎡

Specialized Plant Area

Production Lines

+

Machines Made Every Month

+

Years of Experience

+

Exported Countries

%+

Repeat purchase rate

Paper Strip Nail Machine JG-ZD FAQ

  • What are the specific capacity advantages?

    加 Created with Sketch.
    形状 Created with Sketch.

    · Monopoly technology: The only machine for rigid flat paper nails in China to help clients occupy regional market.

    · Higher output: Full servo system and self-developed cooling system increase capacity by 20%-30%.

    · Stable continuous operation: Support 24-hour full-load mass production with low failure rate.

    · Ultra-high yield: Qualified rate over 99% to reduce waste and production cost.

  • Is the machine easy to operate?

    加 Created with Sketch.
    形状 Created with Sketch.

    Equipped with intelligent PLC touch screen for one-click operation and parameter setting. Humanized layout and automatic program reduce operating difficulty. Modular structure also simplifies daily inspection and maintenance.
