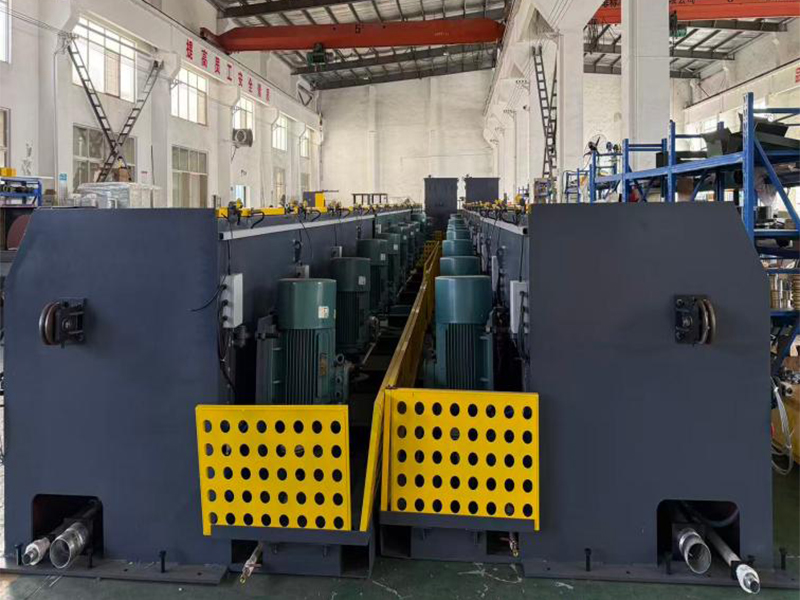

Straight Line Drawing Machine LZ-8/560

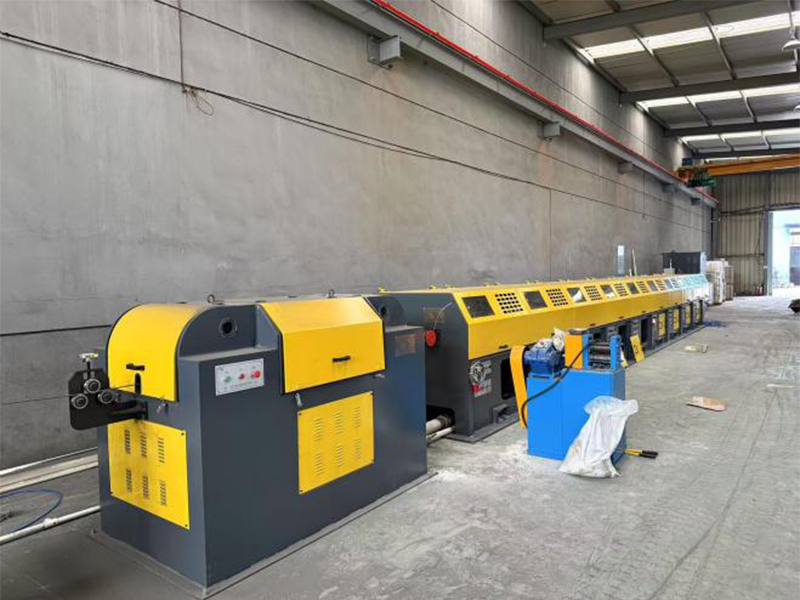

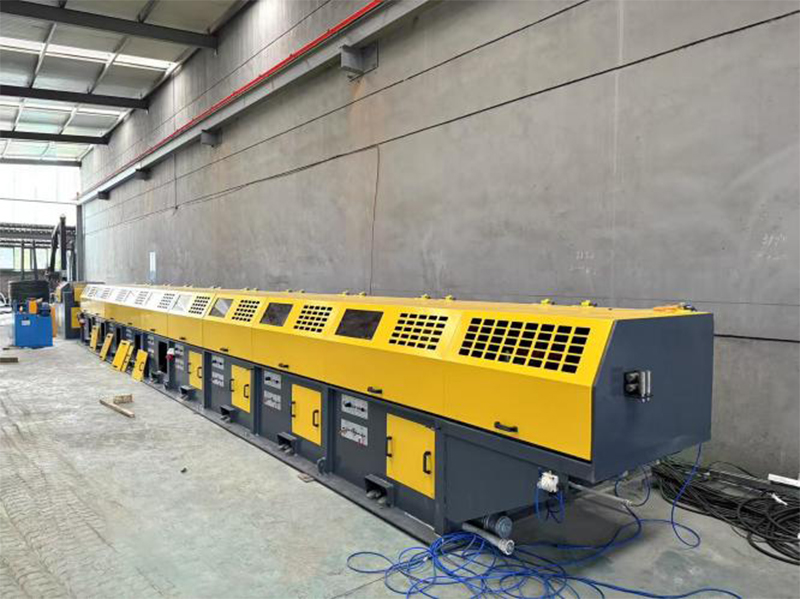

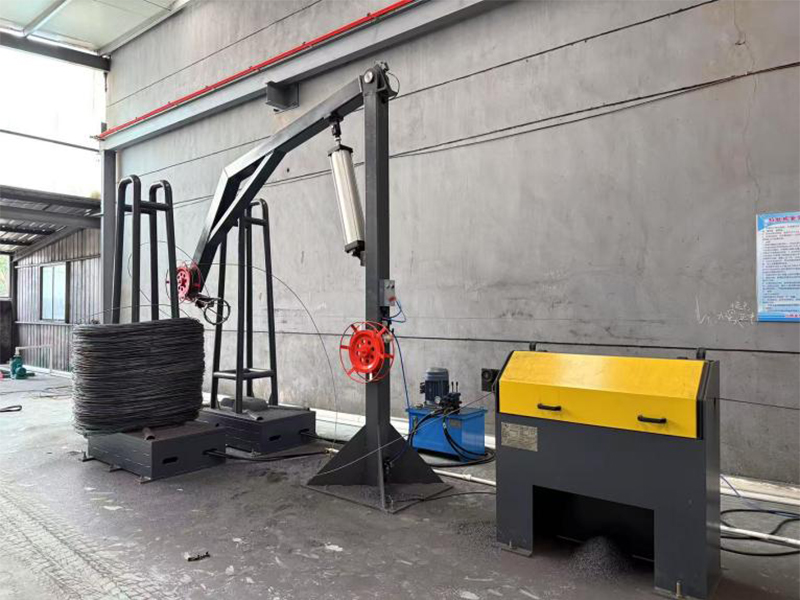

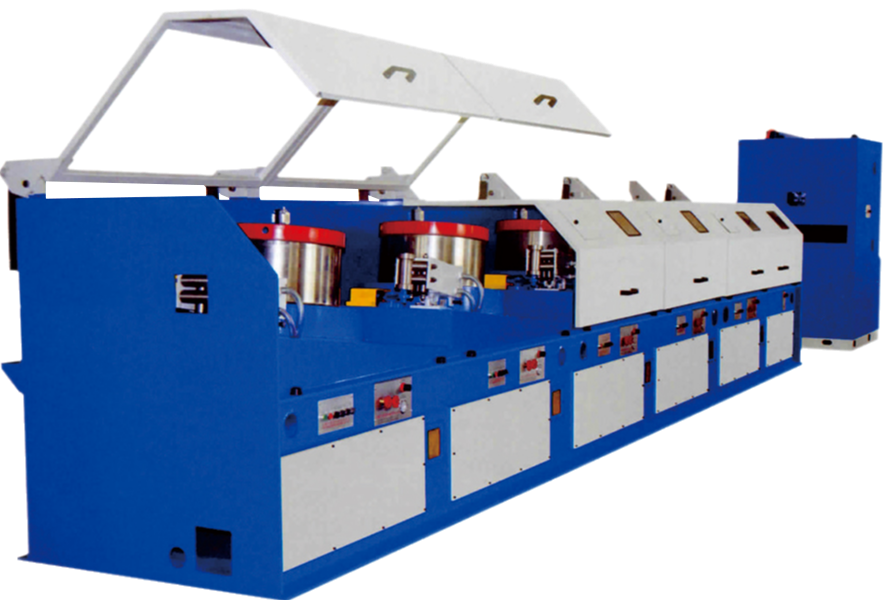

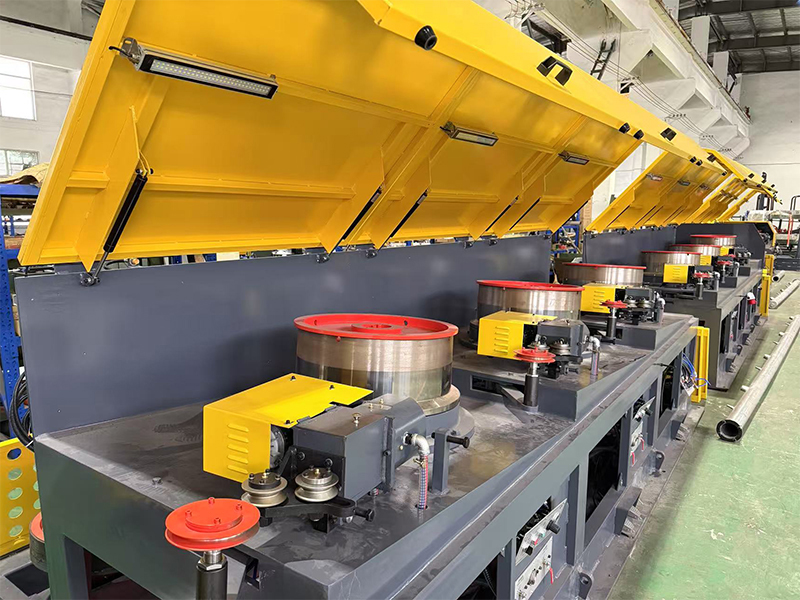

What is a Straight Line Drawing Machine?
The straight wire drawing machine produced by our company is a high-end drawing equipment developed by absorbing and digesting advanced foreign technology, which is particularly suitable for drawing high-strength and high-performance requirements. Mainly suitable for the production of prestressed steel strands, steel window wires, bead wires, rope making wires, spring wires, stainless steel wires, gas shielded welding wires, submerged arc welding wires, and other products. The diameter of the drawing drum of this series of wire drawing machines is o 350-1200mm, with a maximum inlet diameter of up to 16mm, the minimum diameter can be 0.7mm
Technical Specifications of Straight Line Drawing Machine LZ-8/560
| Items | Unit | LZ8/900 | LZ8/800 | LZ8/700 | LZ8/560 | LZ8/400 |
| Diameter of Capstan | mm | 900 | 800 | 700 | 560 | 400 |
| Drawing Dies | times | 9 | 9 | 9 | 10 | 10 |
| Max Wire Diameter | mm | φ14–8 | φ10–8 | φ8–6.5 | φ6.5–5.5 | φ2.8–2.0 |
| Min Outlet Diameter | mm | φ5–3 | φ4–3 | φ3–2.5 | φ2–1.8 | φ1–0.8 |
| Drawing Speed | m/min | 300 | 360 | 480 | 720 | 840 |
| Into the line intensity | MPa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total Compression Ratio | % | 87.24–85.94 | 84–85.94 | 85.94–85.21 | 90.53–89.29 | 87.24–84 |
| Average Compression Ratio | % | 20.48–19.58 | 18.42–19.58 | 19.58–19.13 | 21.00–20.02 | 18.61–16.74 |
| Motor Power | kW | 110–90 | 95–55 | 75–55 | 45–22 | 75–7.5 |
Wire Drawing Machine Accessory

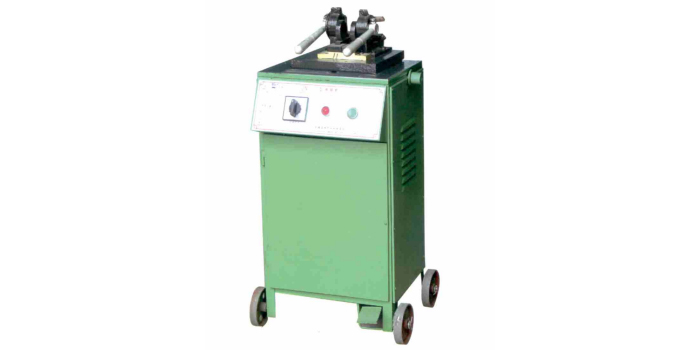

Butt-welding Machine

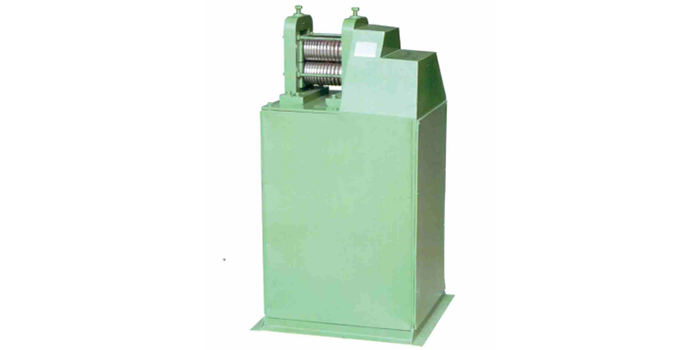

Pointing machine
| Technical Specifications | ||
| Type | Range | |
| FZ-1-4 | φ1-4mm | |
| FZ-1-6.5 | φ1-6.5mm | |
| FZ-3-8 | φ3-8mm | |
| FZ-3-16 | φ3-16mm | |
| Type | The Welding Range | Power | ||||||
| UN-1-4 | copper | 0.8-3mm | iron | φ1-4mm | 3kw | |||
| UN-2-6.5 | copper | φ4mm | iron | φ2-6.5mm | 5kw | |||
| UN-3-8 | copper | φ5mm | iron | φ13-8mm | 7kw | |||
| UN-4-10 | copper | φ6mm | iron | φ4-10mm | 10kw | |||
| UN-10-14 | copper | φ8mm | iron | φ10-14mm | 25kw | |||

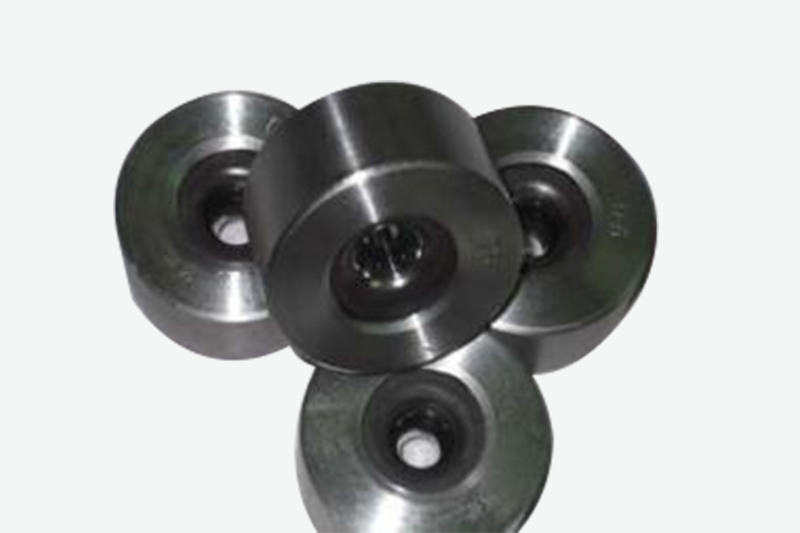

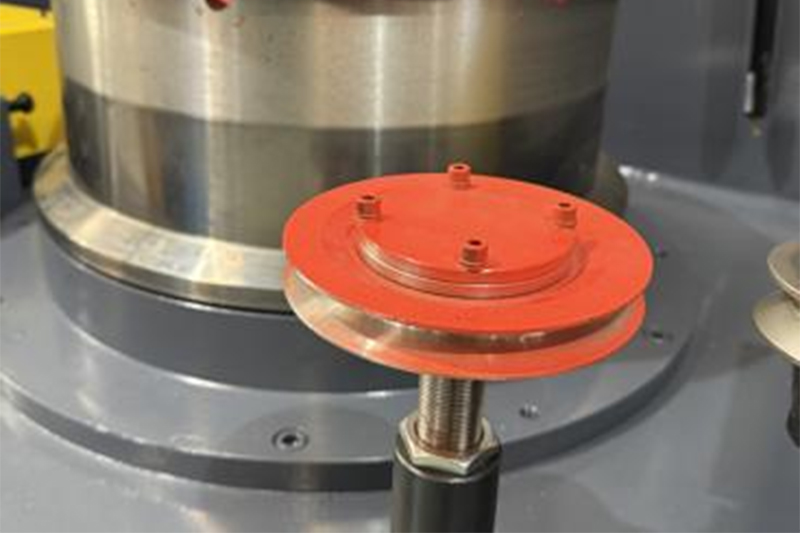

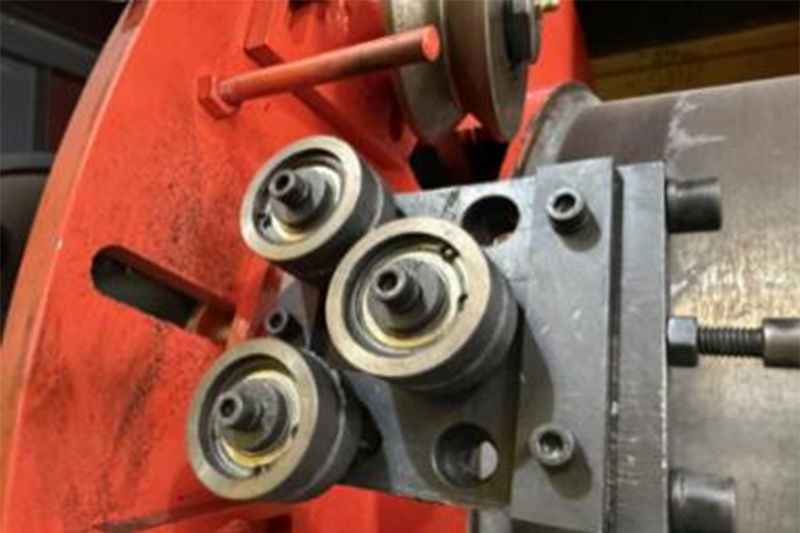

Accesories & Spare Parts We Supply

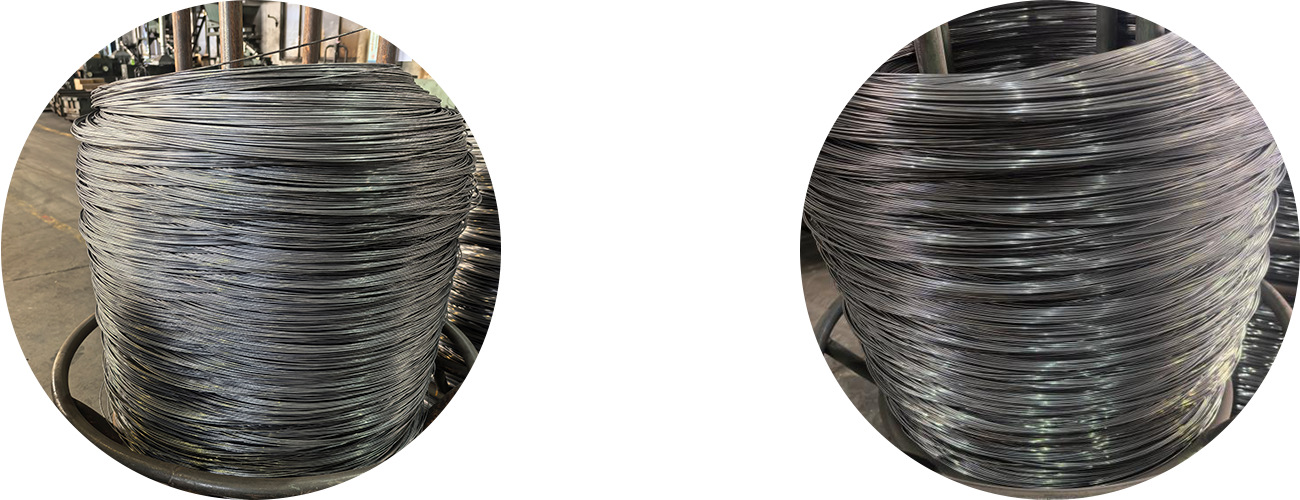

Application Industry of Straight Line Drawing Machine LZ-8/560
Nail Making
Wire Mesh Fencing
Packaging and Logistics

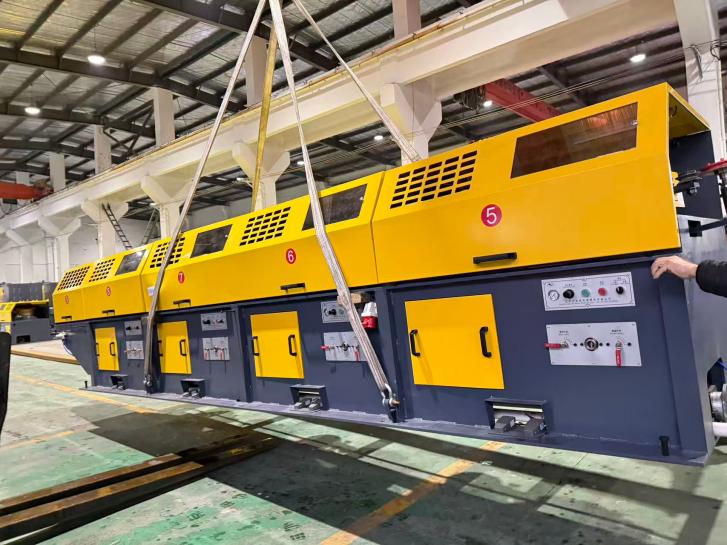

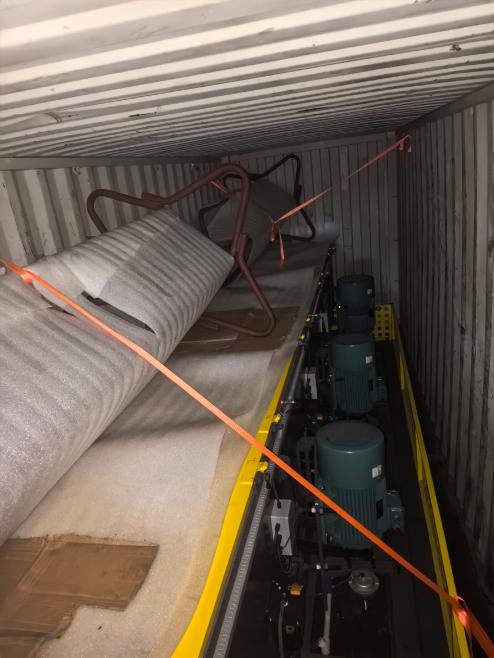

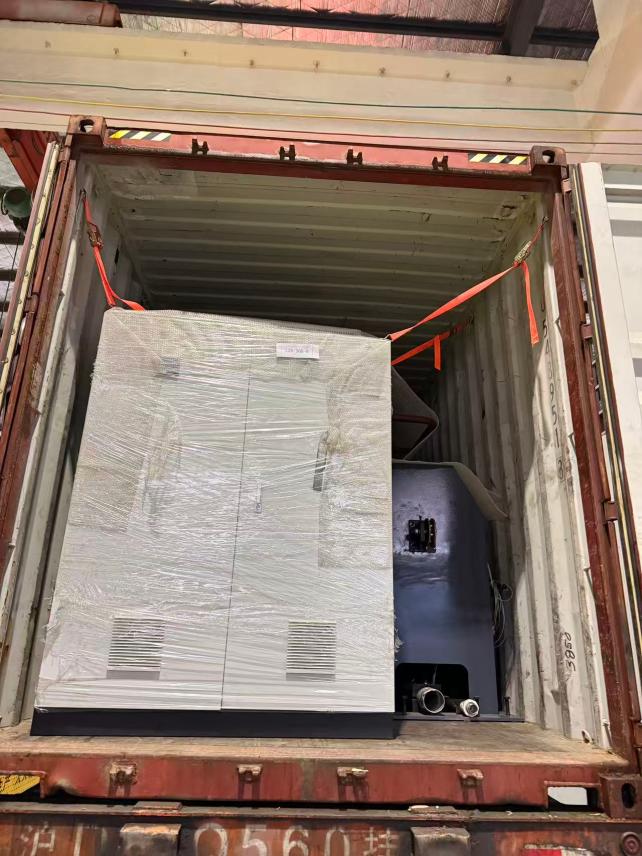

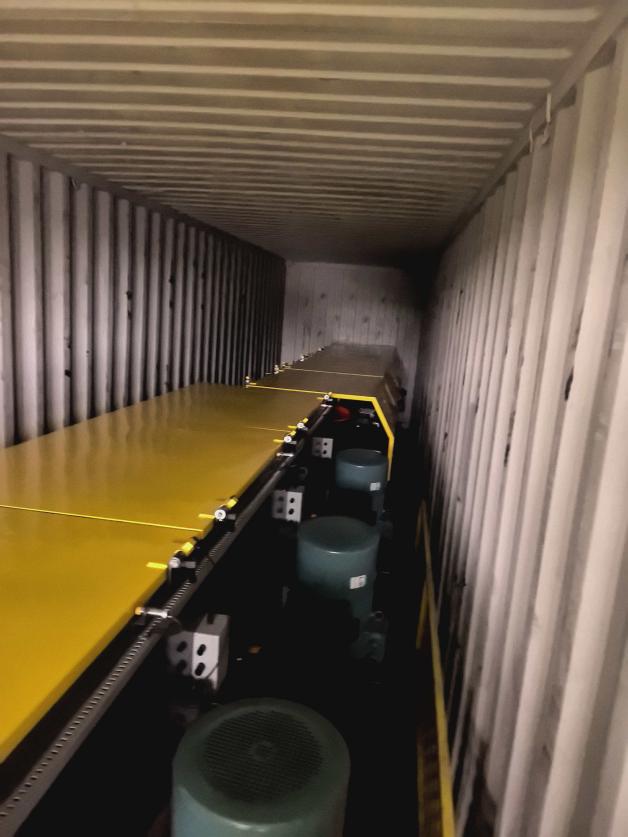

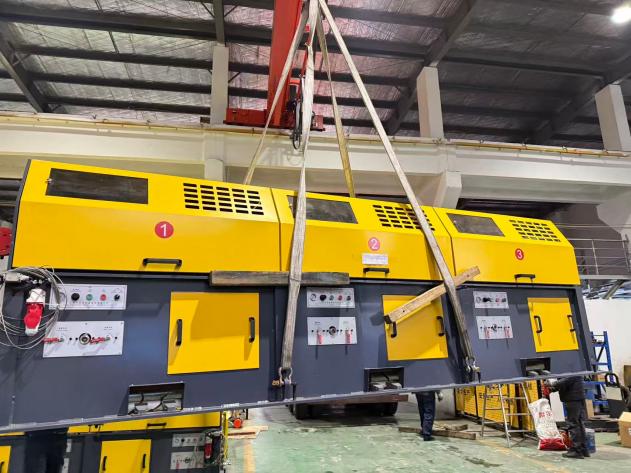

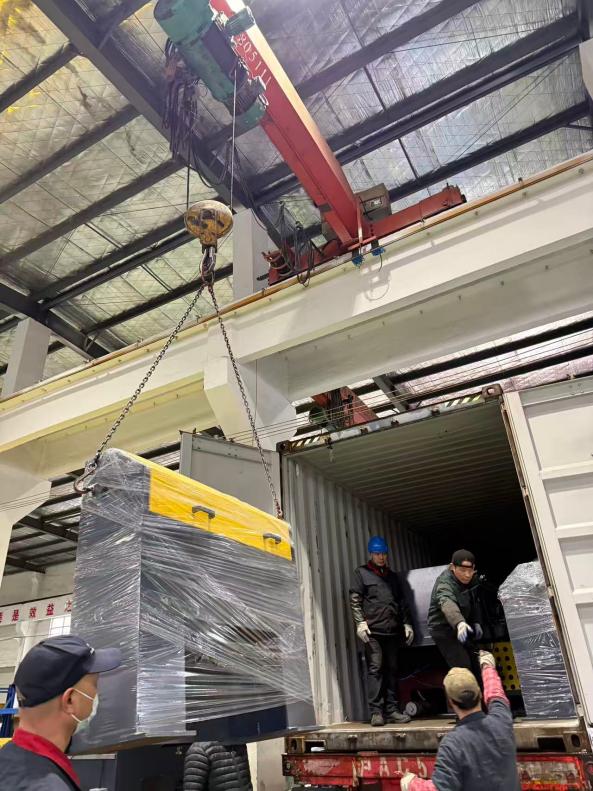

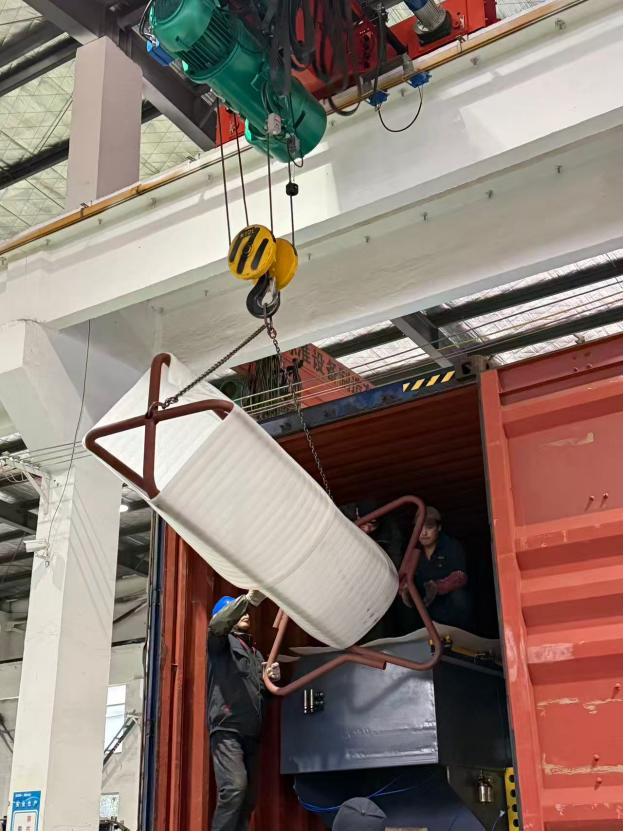

Package and Delivery
Certificates
Straight Line Drawing Machine LZ-8/560 FAQ
-
What is the difference between straight-line wire drawing machine and pulley type wire drawing machine?
Straight-line type: straight wire, no torsion, independent frequency control, high precision for high-carbon steel, stainless steel and welding wire. Pulley type: low cost, easy wire torsion, low precision, only for common low-carbon iron wire.
-
What types of wires can this machine process? What is the wire diameter range?
Suitable for steel wire, stainless steel wire, Inlet:6.5mm, outlet: 1.8mm. Drawing passes and take-up types can be customized.
-
Can the equipment be customized personally?
Yes for all customization. We can adjust drawing passes and take-up types.
-
Are you manufacturer or trader? Is factory inspection available?
We are direct manufacturer. Factory visit is welcome, free wire drawing test for customers.
